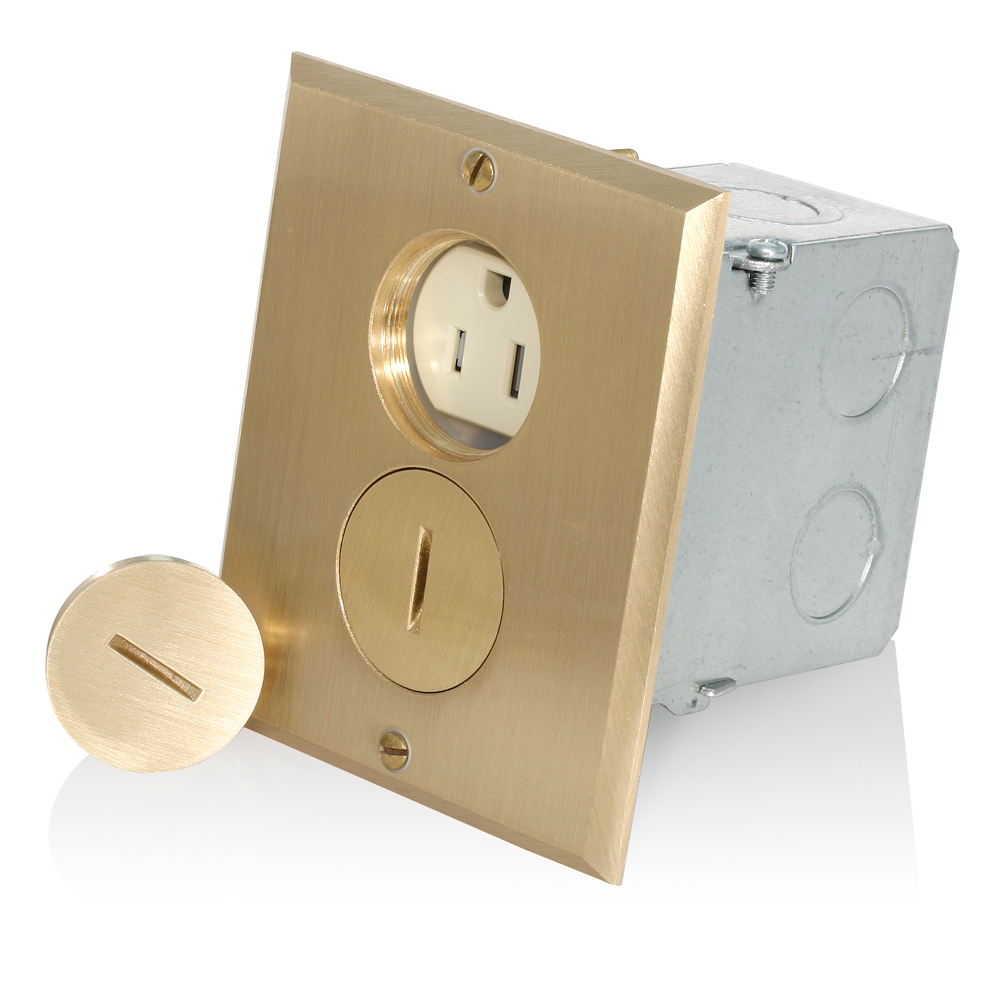

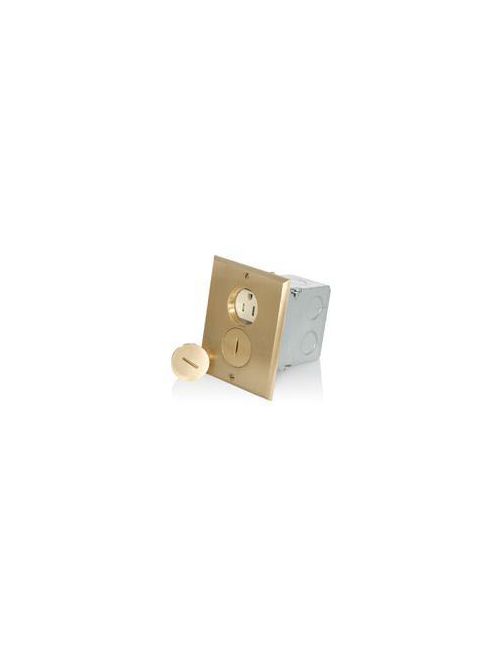

Leviton 25249-TFB 15 Amp 125 Volt NEMA 5-15R 2-Pole 3-Wire Commercial Grade Ivory Tamper-Resistant Straight Blade Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$128.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 25249-TFB
North Coast Part # 671851

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Triple-Wipe .031 Thick
  • Face Material: Nylon
  • Floorplate Material: Solid Brass 0.060 In Thick
  • Color: Ivory
  • Shutter Mechanism: Delrin® Acetal
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 8-32
  • Body Material: Nylon
  • Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File E152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Amperage: 15 A
  • Color: Ivory
  • Country Of Origin: Mexico
  • NEMA: 5-15R
  • Voltage: 125 VAC

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

videos

Categories

Overview

UPC 07847741152
GTiN 00078477411520
Warranty Length 10 yr
Size 4.50 H x 3.75 W x 4.50 D IN
Color Ivory
Operating Temperature 60 C
Voltage 125 Volt
Type Floor Box Duplex Receptacle
Material Nylon
Applications Commercial
Mounting Type Floor Box
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA WD-6,5-15R
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
