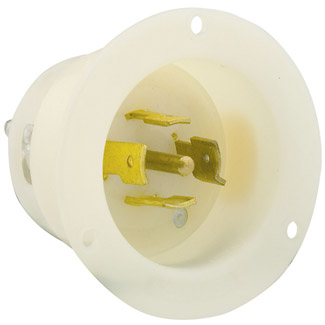

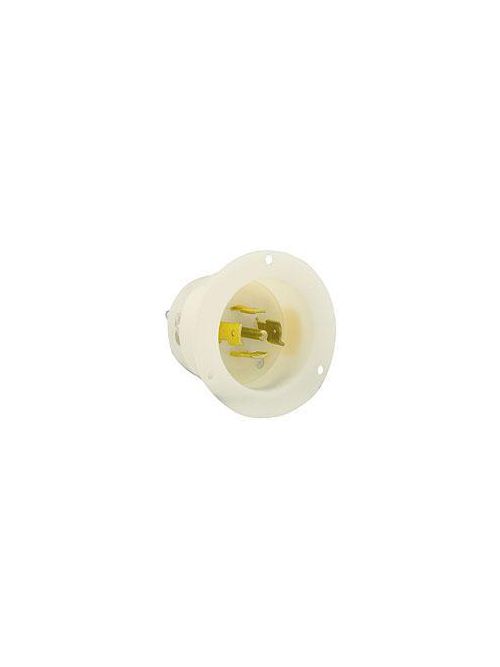

LEV 2525 WH PLUG LOCK 4PO 5WI L22-2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$71.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2525
North Coast Part # 213113

Specifications

Material Specifications

  • Line Contacts: Solid Brass
  • Face Material: Nylon
  • Color: White
  • Strap Material: Thermoplastic Nylon
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Nylon

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 5
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 4
  • Current Limiting: Full Rated Current
  • Voltage: 277/480 VAC
  • Grounding: Grounding
  • Phase: 3-Phase WYE

Product Features

  • Color: White
  • Device Type: Locking Flanged Inlet
  • Brand: Black and White
  • Country Of Origin: United States
  • NEMA: L22-20P

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG
  • Termination: Back

AC Horsepower Ratings

  • At Rated Voltage: 5 HP

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847780587
Item Long Description 20 Amp, 277/480 Volt- 3PY, Flanged Inlet Locking Receptacle, Industrial Grade, Grounding, White
GTiN 00078477805879
Warranty Length Lifetime Limited
Size 2.50 Dia x 1.78 H IN
Color White
Operating Temperature -40 C
Voltage 277 Volt
Type Locking Flanged Inlet
Material Nylon
Applications Commercial
Mounting Type Flange
Country of Origin USA
Wire Size 16-8 AWG
Standard ANSI C-73
Connection Type Back Wired
Horsepower 5 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 5
NEMA L22-20P,WD-6
Number of Phases 3 Phase
Dielectric 2000 V
Environment Dry
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Back Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 4 Pole
Number of Wires 5
Temperature Rise 200 %
Device Type Locking Flanged Inlet
