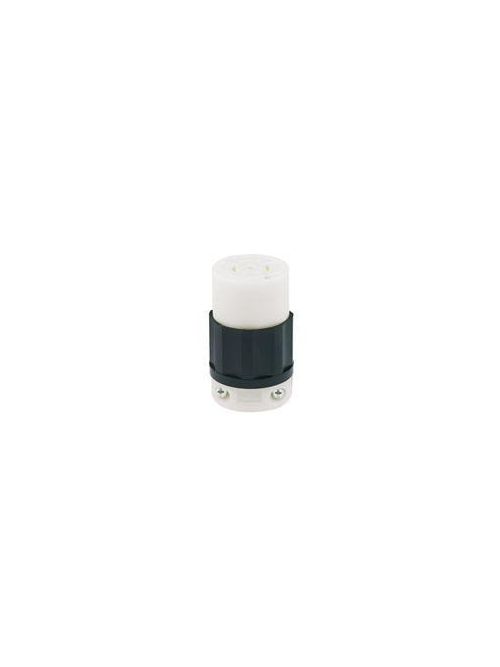

LEV 2533 IND/LKG CONN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$98.19/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2533
North Coast Part # 213202

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: Black-White
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Impact Modified Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 5
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 4
  • Voltage: 347/600 VAC
  • Grounding: Grounding
  • Phase: 3-Phase WYE

Product Features

  • Color: Black-White
  • Device Type: Locking Connector
  • Brand: Black and White
  • Country Of Origin: United States
  • NEMA: L23-20R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .595 - .895
  • Product ID: Ratings are permanently marked on device
  • Wire Gauge: 14-10 AWG
  • Terminal Accom.: 18-10 AWG

AC Horsepower Ratings

  • At Rated Voltage: N/A

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated HB or better UL94
  • Operating Temperature: -40°C to 60°C

videos

Categories

Overview

GTiN 00078477808566
Warranty Length Lifetime Limited
Size 28 Diameter X 3.53 L IN
Color Black/White
Operating Temperature -40 C
Voltage 347 Volt
Type Straight
Material Thermoplastic
Cord Type S,SO,SOO,ST,STO,STOO,STOW-A,STW,STW-A
Applications For Industrial
Mounting Type Cable
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Connection Type Screw Terminal
Blade Type Solid Brass
Body Material Impact Modified Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 5
NEMA L23-20R,WD-6
Number of Phases 3 Phase
Dielectric 2000 V
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Grounding
TC Connection Screw Terminal
Amperage 20 Amp
Environmental Conditions Operating Temperature Range (-40 To 60) C
Number of Poles 4 Pole
Number of Wires 5
Temperature Rise 200 %
Device Type Locking Connector
Sub Brand Black & White
Product UPC 07847780856
Conductor Size 18-10 AWG
Grade Industrial
Wire Type S, SO, ST, STO, STW, STW-A, STOW-A, SOO, STOO
Temperature Rating -40 to 60 C
Blade Dimensions 28 in dia x 3.53 in L
