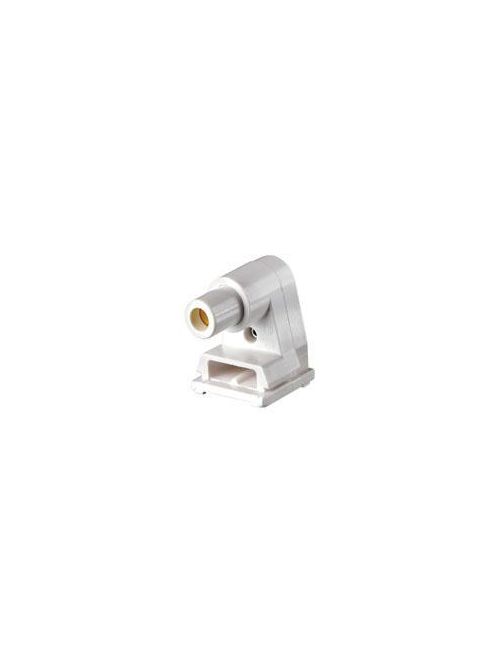

Leviton 2536 1000 Volt 660 W White Thermoset Slide-On Lock-On Pedestal 1-Pin Standard Fluorescent Lampholder
Product image thumbnail 0
Product image thumbnail 1
$17.12/ea
In Stock | 26 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2536
North Coast Part # 213235

Specifications

Mechanical Specifications

  • Mounting Type: Slide-On Lock-On
  • Color: White
  • Body Material: Thermoset
  • Panel Thickness: 20 Ga. Panel
  • Wire Strip Length: 3/8 - 5/8 Inch
  • Contact Type: Plunger
  • Termination: Quickwire 18AWG Solid or Str. Tinned
  • Availability: Distribution
  • Contact Material: Copper-Alloy

Standards and Certifications

  • NOM Certified: 057
  • CSA Certified: File LR-1863
  • UL Rated: Indoor/Outdoor when properly enclosed.
  • UL Listed: File E5833

Product Features

  • Warranty: 1 Year Limited
  • Voltage: 1000 Volt
  • Mounting Type: Slide-On Lock-On
  • Light Type: Fluorescent
  • Color: White
  • Standards and Certifications: UL/CSA/NOM
  • Country Of Origin: Mexico
  • Lamp Base: Slimline
  • Lamp Contacts: Single Pin
  • Panel Thickness: 20 Ga. Panel
  • Style Name: Pedestal
  • Contact Type: Plunger
  • Termination: Quickwire 18AWG Solid or Str. Tinned
  • Availability: Distribution
  • Rated Wattage: 660W
  • Lampholder Type: Linear

Overview

UPC 07847755432
GTiN 00078477554326
Length 1.31 in
Warranty Length 1 yr
Color White
Voltage 1000 Volt
Type Standard Fluorescent Lampholder
Material Plastic
Applications Commercial
Mounting Type Lock-On,Slide-On
Country of Origin Mexico
Style Pedestal
Bulb Type Fluorescent
Standard CSA,NOM,UL
Wattage 660 Watt
Body Material Thermoset
Base Slimline
Family Brand Name Leviton
Lamp Type Fluorescent
Light Type Fluorescent
Contact Material Copper-Alloy
Blade Dimensions 1.31 in L
CSA LR-1863
