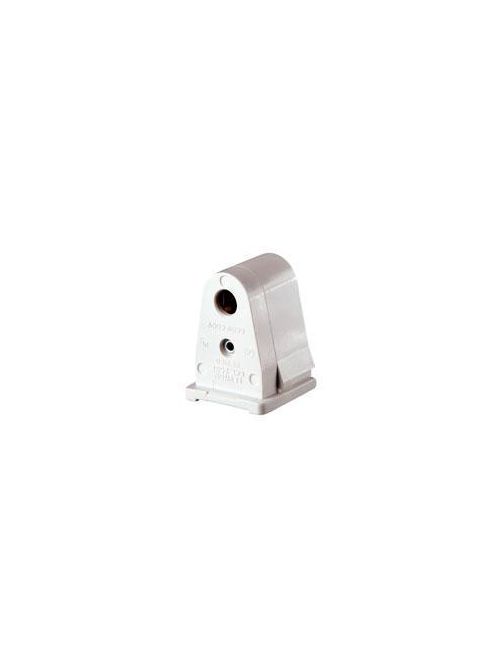

Leviton 2537 600 Volt 660 W White Thermoset Slide-On Lock-On Pedestal 1-Pin Standard Fluorescent Lampholder
$12.12/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2537
North Coast Part # 213242

Specifications

Mechanical Specifications

  • Mounting Type: Slide-On Lock-On
  • Color: White
  • Body Material: Thermoset
  • Panel Thickness: 20 Ga. Panel
  • Wire Strip Length: 3/8 - 5/8 Inch
  • Contact Type: Stationary
  • Termination: Quickwire 18AWG Solid or Str. Tinned
  • Availability: Distribution
  • Contact Material: Copper-Alloy

Standards and Certifications

  • NOM Certified: 057
  • CSA Certified: File LR-1863
  • UL Rated: Indoor/Outdoor when properly enclosed.
  • UL Listed: File E5833

Product Features

  • Warranty: 1 Year Limited
  • Voltage: 600 Volt
  • Mounting Type: Slide-On Lock-On
  • Light Type: Fluorescent
  • Color: White
  • Standards and Certifications: UL/CSA/NOM
  • Country Of Origin: Mexico
  • Lamp Base: Slimline
  • Lamp Contacts: Single Pin
  • Panel Thickness: 20 Ga. Panel
  • Style Name: Pedestal
  • Contact Type: Stationary
  • Termination: Quickwire 18AWG Solid or Str. Tinned
  • Availability: Distribution
  • Rated Wattage: 660W
  • Lampholder Type: Linear

Overview

UPC 07847777527
GTiN 00078477775271
Length 1.31 in
Warranty Length 1 yr
Color White
Voltage 600 Volt
Type Standard, Stationary
Material Plastic
Applications Commercial
Mounting Type Slide-On,Lock-On
Country of Origin Mexico
Style Pedestal
Bulb Type Fluorescent
Standard UL,CSA,NOM
Wattage 660 Watt
Body Material Thermoset
Base Slimline
Family Brand Name Leviton
Lamp Type Fluorescent
Light Type Fluorescent
Contact Material Copper-Alloy
Blade Dimensions 1.31 in L
CSA LR-1863
