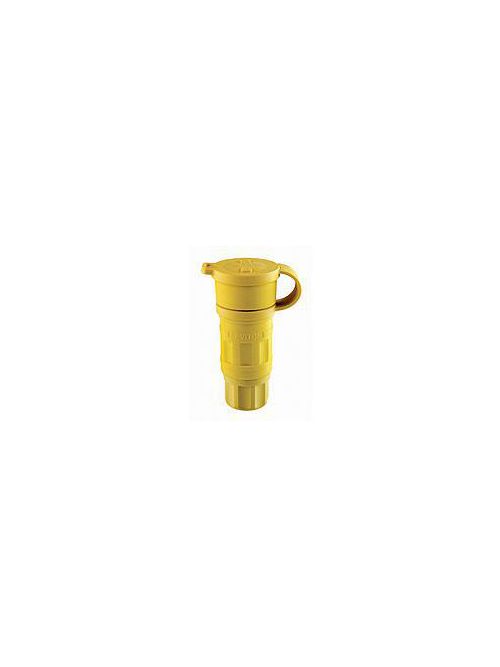

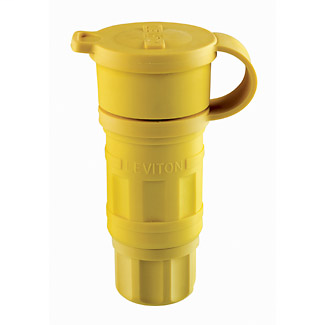

Leviton 25W47 15 Amp 125 Volt 2-Pole 3-Wire NEMA L5-15R Yellow Thermoplastic Grounding Locking Connector
Product image thumbnail 0
Product image thumbnail 1
$48.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 25W47
North Coast Part # 15091

Specifications

Material Specifications

  • Body Interior: Nylon
  • Wire Module: Nylon
  • Terminal Screws: Electroless Nickel-coated Brass
  • Blades/Contacts: Electroless Nickel-coated Brass
  • Bushing: Santoprene TPV
  • Compression Nut, Strain Relief: Nylon
  • Body Material: Santoprene TPV
  • Assembly Screws: Stainless Steel, Non-Magnetic

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL: 498
  • ANSI: C-73
  • NEMA: WD-6

Product Features

  • Color: Yellow
  • Device Type: Locking Connector
  • Brand: Wetguard
  • Country Of Origin: United States
  • NEMA: L5-15R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Cord Grip Range (in): 0.375 to 0.655
  • Terminal Accom.: 18-10 AWG

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Wet
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

videos

Overview

UPC 07847784828
GTiN 00078477848289
Length 4.22 in
Warranty Length Lifetime Limited
Size 1.78 Diameter X 4.22 L IN
Color Yellow
Operating Temperature -40 C
Voltage 125 Volt
Type Watertight, Straight
Diameter 1.78 in
Material TPV
Number of Conductors 3
Conductor Size 18-10 AWG
Cord Type S,SO,SOW,ST
Applications Industrial
Mounting Type Cable
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Connection Type Screw Terminal
Body Material Santoprene TPV
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA L5-15R,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Environment Wet
Number of Ports 2
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
Contact Material Electroless Nickel-Coated Brass
TC Connection Screw Terminal
Actuator Non-Magnetic,Stainless Steel
Amperage 15 Amp
Environmental Conditions Operating Temperature Range (-40 To 60) C
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Locking Connector
Sub Brand Wetguard
