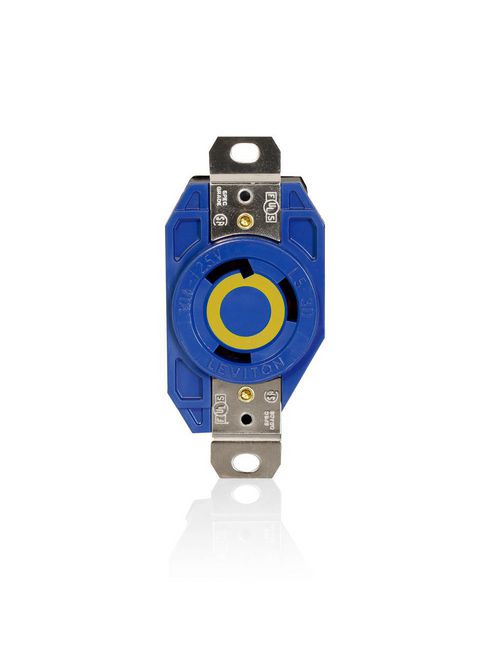

LEV 2610-BU L5-30 BLUE SINGLE RECEP

Specifications

Material Specifications

• Ground Clips: Nickel-Plated Brass
• Line Contacts: Brass
• Face Material: Valox
• Color: Blue
• Cover Material: Valox 357
• Ground Contacts: Brass
• Base Material: Valox
• Grounding Screw: Chromated Brass
• Terminal Screws: Chromated Brass
• Body Material: Valox 357
• Terminal Clamps: Zinc-Plated Brass
• Strap Material: Nickel-Plated Brass

Warranty

• Warranty: Limited Lifetime Warranty

Standards and Certifications

• NOM: 057
• NEMA: WD-1 & WD-6
• UL: 498
• CSA: C22.2 No. 42
• ANSI: C-73
• UL Fed Spec: W-C-596

Electrical Specifications

• Amperage: 30 A
• Wire: 3
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Pole: 2
• Current Limiting: Full Rated Current
• Voltage: 125 VAC
• Grounding: Isolated Ground

Product Features

• Warranty: Limited Lifetime Warranty
• Face Material: Valox
• NEMA: L5-30R
• Color: Blue
• Country Of Origin: Mexico
• Base Material: Valox

Mechanical Specifications

• Terminal ID: Marked on Device
• Product ID: Ratings and NEMA I.D. permanently marked on device
• Terminal Accom.: 14-8 AWG
• Termination: Back & Side

AC Horsepower Ratings

• At Rated Voltage: 2 HP

Environmental Specifications

• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40°C to 60°C
