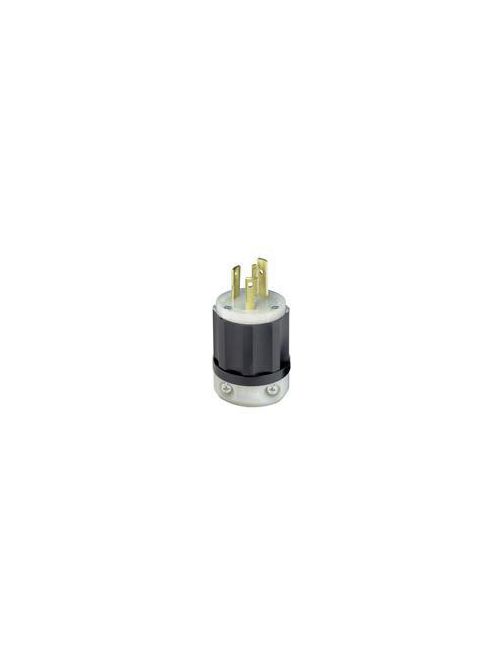

Leviton 2621 250 Volt 30 Amp 2-Pole 3-Wire NEMA L6-30P 2 Hp Black/White Nylon Grounding Locking Plug
Product image thumbnail 0
Product image thumbnail 1
$24.81/ea
In Stock | 85 available at 14 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2621
North Coast Part # 213922

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: Black-White
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Impact Modified Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 30 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 250 VAC
  • Grounding: Grounding

Product Features

  • Color: Black-White
  • Device Type: Locking Plug
  • Brand: Black and White
  • Country Of Origin: United States
  • NEMA: L6-30P

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: 0.520 to 0.930
  • Product ID: Ratings are permanently marked on device
  • Wire Gauge: 16-8 AWG
  • Terminal Accom.: 18-10 AWG

AC Horsepower Ratings

  • At Rated Voltage: 2 HP

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated HB or better UL94
  • Operating Temperature: -40°C to 60°C

videos

Overview

UPC 07847780795
GTiN 00078477807958
Warranty Length Lifetime Limited
Size 28 Diameter X 2.47 L IN
Color Black,White
Operating Temperature -40 C
Voltage 250 Volt
Type Industrial Grade
Material Impact Modified Nylon
Cord Type S, SO, ST, STO, STW, STW-A, STOW-A, SOO, STOO
Applications For Industrial Use
Mounting Type Cable
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Connection Type Screw Terminal
Blade Type Solid Brass
Horsepower 2 hp
Body Material Impact Modified Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 3
NEMA L6-30P,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Grounding
TC Connection Screw Terminal
Amperage 30 Amp
Environmental Conditions Operating Temperature Range (-40 To 60) C
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Locking Plug
Sub Brand Black & White
Conductor Size 18-10 AWG
Temperature Rating -40 to 60 C
Blade Dimensions 2.08 in dia x 2.47 in L
