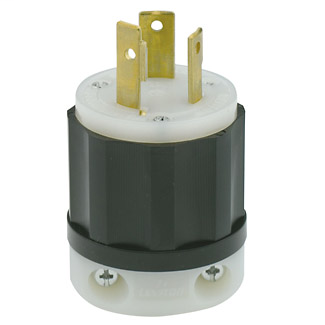

LEV 2641 IND/LKG PLUG
$42.96/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2641
North Coast Part # 214150

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: Black-White
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Impact Modified Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 30 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 480 VAC
  • Grounding: Grounding

Product Features

  • NEMA: L8-30P
  • Color: Black-White
  • Brand: Black and White
  • Country Of Origin: United States
  • Device Type: Locking Plug
  • Cord Range: .385 - .930

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .385 - .930
  • Product ID: Ratings are permanently marked on device
  • Wire Gauge: 16-8 AWG
  • Terminal Accom.: 18-10 AWG

AC Horsepower Ratings

  • At Rated Voltage: 5 HP

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated HB or better UL94
  • Operating Temperature: -40°C to 60°C

videos

Categories

Overview

UPC 07847780793
GTiN 00078477807934
Warranty Length Lifetime Limited
Size 28 Dia x 2.47 H IN
Color Black,White
Operating Temperature -40 C
Voltage 480 Volt
Type Locking Plug
Material Super Tough Nylon
Applications Industrial
Mounting Type Cable
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Blade Type Solid Brass
Horsepower 5 hp
Body Material Impact Modified Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 3
NEMA L8-30P,WD-6
Dielectric 2000 V
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Grounding
Contact Material Solid Brass
Amperage 30 Amp
Environmental Conditions Operating Temperature Range (-40 to 60) C
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Locking Plug
Sub Brand Black & White
