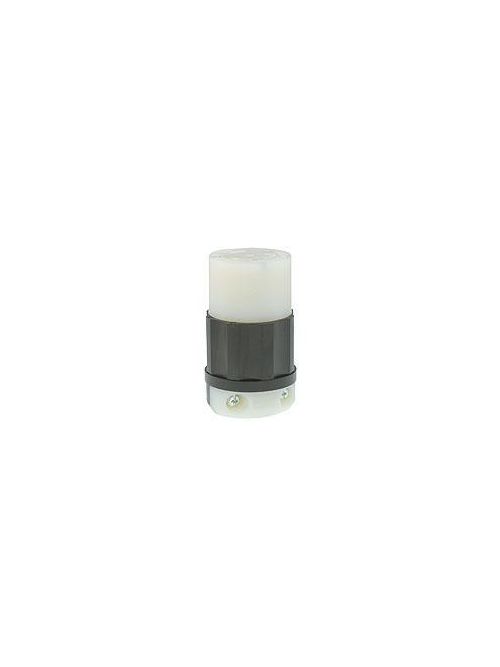

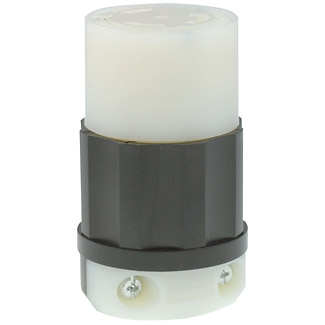

LEV 2663 IND/LKG CONN

Specifications

Material Specifications

• Wire Module: Nylon
• Color: Black-White
• Clamp Insert: Nylon
• Blades/Contacts: Solid Brass
• Back Cover: Thermoplastic
• Terminal Screws: Brass
• Body Material: Impact Modified Nylon
• Cord-Clamp: Nylon
• Assembly Screws: Steel, Zinc Plated

Standards and Certifications

• Warranty: Limited Lifetime Warranty
• NOM: 057
• CSA C22.2 No. 42: File LR-406
• UL498: File E13393
• ANSI: C-73
• UL Fed Spec WC-596: File E13393
• NEMA: WD-6

Electrical Specifications

• Amperage: 30 A
• Wire: 3
• Dielectric Voltage: Withstands 2000V per UL498
• Current Interrupting: Certified for current interrupting at full rated current
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Pole: 3
• Voltage: 125/250 VAC
• Grounding: Non-Grounding

Product Features

• NEMA: L10-30R
• Color: Black-White
• Brand: Black and White
• Country Of Origin: United States
• Device Type: Locking Connector
• Cord Range: .385 - .930

Mechanical Specifications

• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Cord Range: .385 - .930
• Product ID: Ratings are permanently marked on device
• Wire Gauge: 16-8 AWG
• Terminal Accom.: 18-10 AWG

AC Horsepower Ratings

• At Rated Voltage: 2 HP L-L / 2 HP L-N

Environmental Specifications

• Environment: Dry
• Flammability: Rated HB or better UL94
• Operating Temperature: -40°C to 60°C
