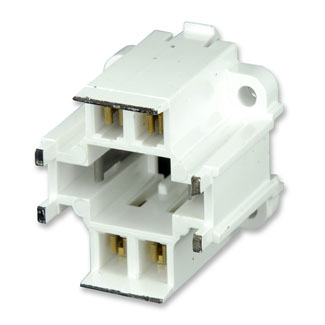

Leviton 26725-401 GX24q-1 Base 10 W, 13 W 4-Pin 10 mm Vertical Black Color Code White Body Compact Fluorescent Lampholder
$10.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 26725-401
North Coast Part # 598019

Specifications

Mechanical Specifications

  • Mounting Orientation: Vertical
  • Mounting Type: Bottom Snap-In
  • Body Material: Thermoplastic
  • Panel Thickness: 16 Ga. Panel
  • Termination: Quick-Connect 18AWG Solid or Str. Tinned
  • Retainer Clip: Stainless Steel
  • Availability: Distribution
  • Contact Material: Copper-Alloy

Standards and Certifications

  • CSA Certified: File LR-1863
  • UL Listed: File E5833
  • UL Rated: Indoor/Outdoor when properly enclosed.
  • NOM: 057

Electrical Specifications

  • Color Code: Black
  • Mounting Type: Bottom Snap-In
  • Color: White
  • Lamp Wattage: 10 W 13 W
  • Panel Thickness: 16 Ga. Panel
  • Wire Strip Length: 3/8 Inch
  • Termination: Quick-Connect 18AWG Solid or Str. Tinned
  • Body Style: Standard Body
  • Wiring Ports: 2

Product Features

  • Warranty: 1 Year Limited
  • Voltage: 600 Volt
  • Mounting Orientation: Vertical
  • Light Type: Fluorescent
  • Color Code: Black
  • Standards and Certifications: UL/CSA/NOM
  • Country Of Origin: Mexico
  • Lamp Wattage: 10 W 13 W
  • Lamp Base: G24q-1, GX24q-1
  • Panel Thickness: 16 Ga. Panel
  • Style Name: Standard Body
  • Termination: Quick-Connect 18AWG Solid or Str. Tinned
  • Lamp Contacts: 4-Pin
  • Mounting Type: Bottom Snap-In
  • Availability: Distribution
  • Rated Wattage: 75W
  • Lampholder Type: Compact

Overview

UPC 07847785031
GTiN 00078477850312
Length 1.32 in
Warranty Length 1 yr
Color White with Black
Voltage 600 Volt
Type Fluorescent Lampholder
Applications For Commercial use
Mounting Type Bottom Snap-In
Country of Origin Mexico
Style Standard Body
Bulb Type Compact Fluorescent
Standard CSA,NOM,UL
Wattage 75 Watt
Body Material Thermoplastic
Base G24q-1
Family Brand Name Leviton
Lamp Type Compact Fluorescent
Ballast Type Electronic
Light Type Fluorescent
Contact Material Copper-Alloy
Blade Dimensions 1.32 in L
CSA LR-1863
Color Coding Black
Lamp Wattage 10 W
