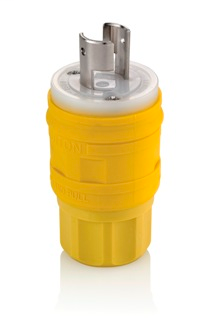

LEV 26W07 WETGUARD L2-20P
$33.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 26W07
North Coast Part # 674576

Specifications

Material Specifications

  • Body Interior: Nylon
  • Wire Module: Nylon
  • Terminal Screws: Electroless Nickel-coated Brass
  • Blades/Contacts: Electroless Nickel-coated Brass
  • Bushing: Santoprene TPV
  • Compression Nut, Strain Relief: Nylon
  • Body Material: Santoprene TPV
  • Assembly Screws: Stainless Steel, Non-Magnetic

Standards and Certifications

  • Warranty: Limited Lifetime Warranty Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL: 498
  • ANSI: C-73
  • NEMA: WD-6

Product Features

  • Color: Yellow
  • Device Type: Locking Plug
  • Brand: Wetguard
  • Country Of Origin: United States
  • NEMA: L2-20P

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Cord Grip Range (in): .375-.875
  • Terminal Accom.: #16 to #10

Electrical Specifications

  • Amperage: 20 A
  • Wire: 2
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC
  • Grounding: Non-Grounding

Environmental Specifications

  • Environment: Wet
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C
  • IP Rating: IP66, IP67, IP69K

videos

Overview

UPC 07847747427
GTiN 00078477474273
Warranty Length Lifetime Limited
Size 24 Diameter X 3.61 L IN
Color Yellow
Operating Temperature -40 C
Voltage 250 Volt
Type Locking,Watertight Plug
Material TPV
Cord Type S,SJ,SJT,SJTO,SJTOW,SO,SOW,ST,SVT
Applications Industrial
Mounting Type Cable
Country of Origin USA
Wire Size 16-10 AWG
Standard ANSI C-73
Connection Type Screw Terminal
Body Material Santoprene TPV
Family Brand Name Leviton
Wire Count 2
NEMA L2-20P,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Environment Wet
Flamability Class Rated V-2 Per UL 94
Grounding Non-Grounding
Contact Material Electroless Nickel-Coated Brass
TC Connection Screw Terminal
Actuator Non-Magnetic,Stainless Steel
Amperage 20 Amp
IP Rating IP66,IP67,IP69K
Environmental Conditions Operating Temperature Range (-40 To 60) C
Number of Poles 2 Pole
Number of Wires 2
Temperature Rise 200 %
Device Type Locking Plug
Sub Brand Wetguard
