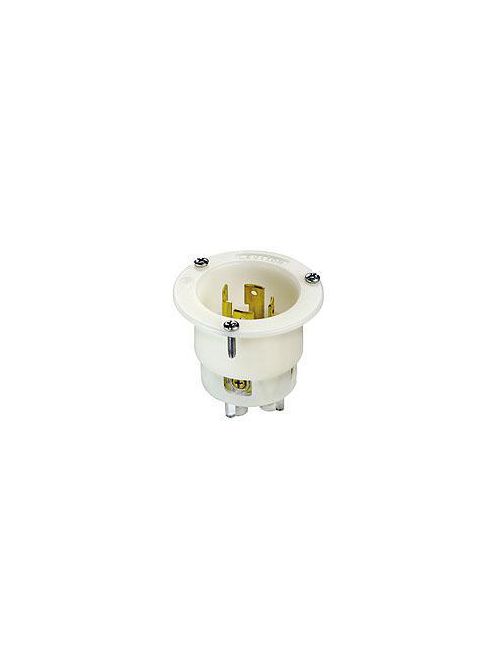

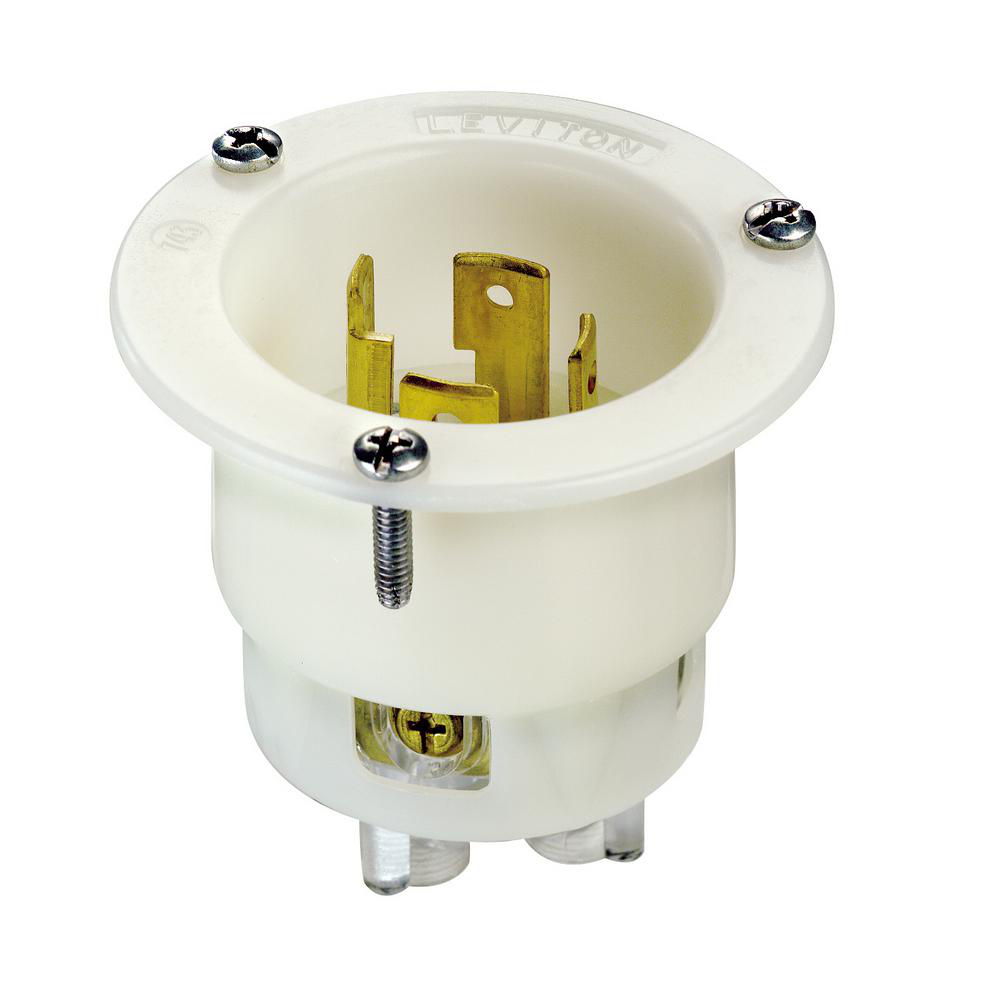

Leviton 2715 Flanged Inlet
$65.95/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2715
North Coast Part # 214794

Specifications

Material Specifications

  • Line Contacts: Solid Brass
  • Face Material: Nylon
  • Color: White
  • Strap Material: Thermoplastic Nylon
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Nylon

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 30 A
  • Wire: 4
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 3
  • Current Limiting: Full Rated Current
  • Voltage: 125/250 VAC
  • Grounding: Grounding

Product Features

  • Color: White
  • Device Type: Locking Flanged Inlet
  • Brand: Black and White
  • Country Of Origin: United States
  • NEMA: L14-30P

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG
  • Termination: Back

AC Horsepower Ratings

  • At Rated Voltage: 2 HP L-L / 2 HP L-N

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847780638
GTiN 00078477806388
Warranty Length Lifetime Limited
Size 33 Dia. IN
Color White
Operating Temperature -40 C
Voltage 250 Volt
Type Straight, Locking
Material Nylon
Applications Commercial
Mounting Type Flange
Country of Origin United States
Wire Size 16-8 AWG
Standard ANSI C-73
Connection Type Back Wired
Horsepower 2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 4
NEMA L14-30P,WD-6
Dielectric 2000 V
Environment Dry
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Back Wired
Amperage 30 Amp
Dielectric Strength 2000 V
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 3 Pole
Number of Wires 4
Temperature Rise 200 %
Device Type Locking Flanged Inlet
Sub Brand V-0-Max
Conductor Size 16-8 AWG
Blade Dimensions 3.03 in dia
