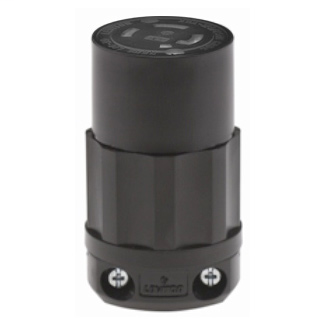

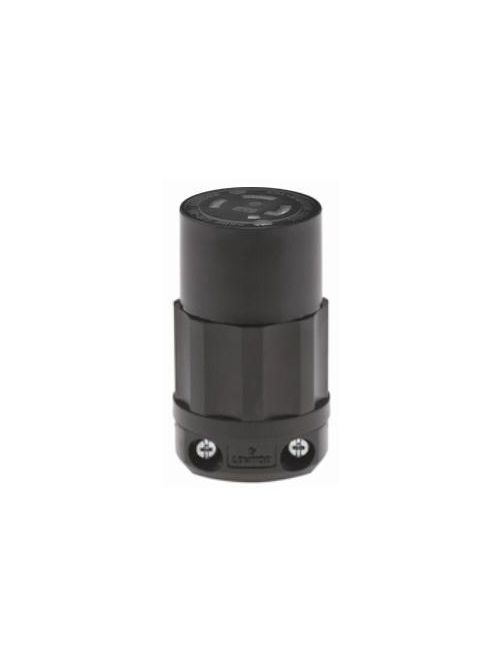

LEV 2723-B ENT BLK L15-30R CONN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$115.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2723-B
North Coast Part # 1827557

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: Black
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Impact Modified Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 30 A
  • Wire: 4
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 3
  • Voltage: 250 VAC
  • Grounding: Grounding
  • Phase: 3-Phase

Product Features

  • Color: Black
  • Device Type: Locking Connector
  • Brand: Black and White
  • Country Of Origin: United States
  • NEMA: L15-30R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .595 - 1.150
  • Product ID: Ratings are permanently marked on device
  • Wire Gauge: 14-8 AWG
  • Terminal Accom.: 18-10 AWG

AC Horsepower Ratings

  • At Rated Voltage: 3 HP

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated HB or better UL94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847714380
Item Long Description 30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Locking Connector,Industrial Grade, Grounding, All Black - Black
GTiN 00078477143803
Warranty Length Lifetime Limited
Size 2.22 Diameter X 3.78 L IN
Color Black
Operating Temperature -40 C
Voltage 250 Volt
Type Locking Connector
Material Impact Modified Nylon
Cord Type S,SO,SOO,ST,STO,STOO,STOW-A,STW,STW-A
Applications Industrial
Mounting Type Cable
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Connection Type Screw Terminal
Blade Type Solid Brass
Horsepower 3 hp
Body Material Impact Modified Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 4
NEMA L15-30R,WD-6
Number of Phases 3 Phase
Dielectric 2000 V
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Grounding
TC Connection Screw Terminal
Amperage 30 Amp
Environmental Conditions Operating Temperature Range (-40 To 60) C
Number of Poles 3 Pole
Number of Wires 4
Temperature Rise 200 %
Device Type Locking Connector
Sub Brand Black & White
