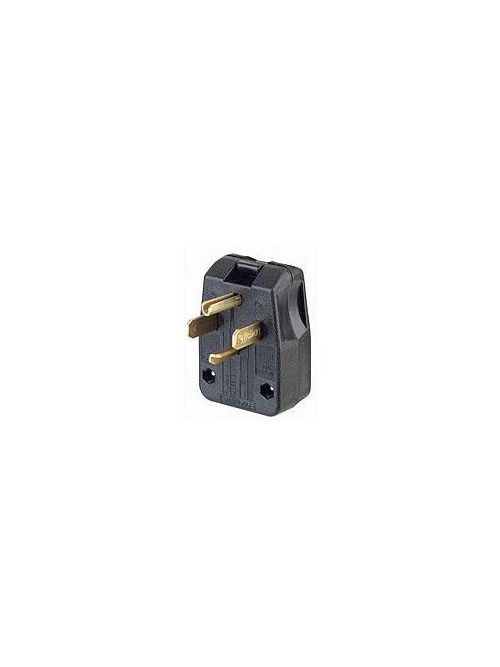

Leviton 275-T 125/250 Volt 30/50 Amp 3-Pole 4-Wire NEMA 14-30P/14-50P Black Thermoplastic Angled Polarized Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 275-T
North Coast Part # 215568


Material Specifications

  • Color: Black
  • Blades/Contacts: Brass
  • Body Material: Thermoplastic
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • NEMA: WD-6

Product Features

  • Color: Black
  • Country Of Origin: Mexico
  • NEMA: 14-30P/14-50P

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .750 - 1.125
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 14-6 AWG

Electrical Specifications

  • Amperage: 30/50 A
  • Wire: 4
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 3
  • Voltage: 125/250 VAC
  • Grounding: Grounding

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C


UPC 07847777140
Item Long Description 30/50 Amp, 125/250 Volt, Dual Power Vinyl Grounding Angle Plug, Black
GTiN 00078477771402
Warranty Length 2 yr
Size 3.49 H x 2.56 W x 1.44 D IN
Color Black
Operating Temperature -40 C
Voltage 125/250 Volt
Type Angled
Material Thermoplastic
Conductor Size 14-6 AWG
Applications Commercial
Mounting Type Cable
Country of Origin Mexico
Wire Size 0.687-150 in
Standard ANSI C-73
Blade Type Brass
Body Material Thermoplastic
Screw Type Steel,Zinc-Plated
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 4
NEMA 14-30P,14-50P,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
Contact Material Brass
Amperage 30 Amp
Blade Dimensions 2.56 in W x 1.44 in D x 3.49 in H
Cord Size 0.687 - 1.5 in
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 3 Pole
Number of Wires 4
Temperature Rise 150 %
