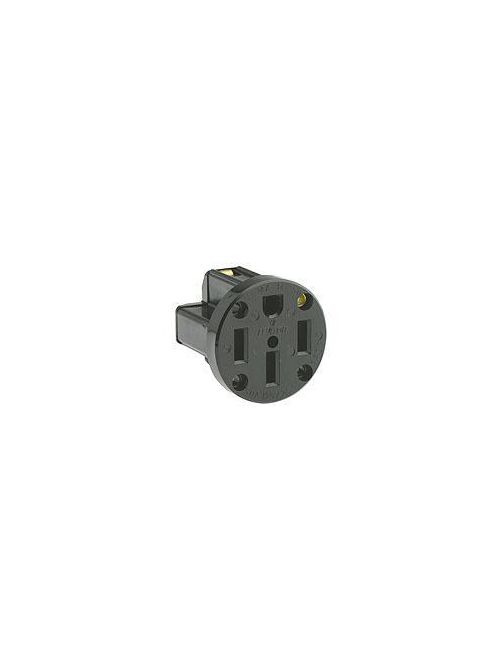

LEV 279-PM REC PANEL MT
Product image thumbnail 0
Product image thumbnail 1
$61.05/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 279-PM
North Coast Part # 668552

Specifications

Material Specifications

  • Color: Black
  • Body Material: Nylon
  • Face Material: Nylon

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 50 A
  • Wire: 4
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 3
  • Current Limiting: Full Rated Current
  • Voltage: 125/250 VAC
  • Grounding: Grounding

Product Features

  • Amperage: 50 A
  • Color: Black
  • Country Of Origin: Mexico
  • NEMA: 14-50R
  • Voltage: 125/250 VAC

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: Up to 4 AWG

AC Horsepower Ratings

  • At Rated Voltage: 3 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847732774
GTiN 00078477327746
Warranty Length 10 yr
Size 2.10 Dia x 2.22 H IN
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type Panel Mount,Straight Blade
Material Thermoplastic
Conductor Size 14 - 6 AWG
Applications Commercial
Mounting Type Panel
Grade Commercial
Country of Origin Mexico
Wire Size 14-6 AWG
Standard ANSI C-73
Connection Type Side Wired
Horsepower 3 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 4
NEMA 14-50R,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Side Wired
Amperage 50 Amp
Dielectric Strength 2000 V
Blade Dimensions 2.1 in dia x 2.22 in H
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 3 Pole
Number of Wires 4
Temperature Rise 150 %
