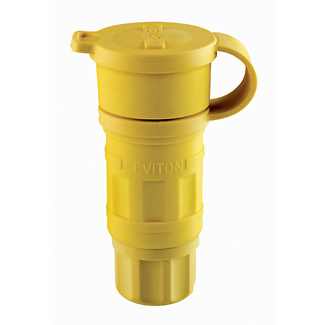

LEV 27W07 YL WETGUARD CONN LOCK 2PO
$49.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 27W07
North Coast Part # 674577

Specifications

Material Specifications

  • Body Interior: Nylon
  • Wire Module: Nylon
  • Terminal Screws: Electroless Nickel-coated Brass
  • Blades/Contacts: Electroless Nickel-coated Brass
  • Bushing: Santoprene TPV
  • Compression Nut, Strain Relief: Nylon
  • Body Material: Santoprene TPV
  • Assembly Screws: Stainless Steel, Non-Magnetic

Standards and Certifications

  • Warranty: Limited Lifetime Warranty Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL: 498
  • ANSI: C-73
  • NEMA: WD-6

Product Features

  • Color: Yellow
  • Device Type: Locking Connector
  • Brand: Wetguard
  • Country Of Origin: United States
  • NEMA: L2-20R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Cord Grip Range (in): .375-.875
  • Terminal Accom.: #16 to #10

Electrical Specifications

  • Amperage: 20 A
  • Wire: 2
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC
  • Grounding: Non-Grounding

Environmental Specifications

  • Environment: Wet
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C
  • IP Rating: IP66, IP67, IP69K

videos

Overview

UPC 07847747430
GTiN 00078477474303
Warranty Length Lifetime Limited
Size 2.50 Diameter X 5.52 L IN
Color Yellow
Operating Temperature -40 C
Voltage 250 Volt
Type Locking,Watertight Connector
Material TPV
Cord Type SJ,SJTOW,SO,SOW,SVT,SJTO,SJT,S,ST
Applications For Industrial
Mounting Type Cable
Country of Origin United States
Wire Size 16-10 AWG
Standard ANSI C-73
Connection Type Screw Terminal
Body Material Santoprene TPV
Family Brand Name Leviton
Wire Count 2
NEMA L2-20R,WD-6
Number of Phases 1
Dielectric 2000 V
Environment Wet
Flamability Class Rated V-2 Per UL 94
Grounding Non-Grounding
Contact Material Electroless Nickel-Coated Brass
TC Connection Screw Terminal
Actuator Non-Magnetic,Stainless Steel
Amperage 20 Amp
IP Rating IP67,IP66,IP69K
Environmental Conditions Watertight
Number of Poles 2 Pole
Number of Wires 2
Temperature Rise 200 %
Device Type Locking Connector
Sub Brand Wetguard
Conductor Size 16-10 AWG
Grade Industrial
Wire Type S, ST, SO, SVT, SOW, SJ, SJT, SJTO, SJTOW
Temperature Rating -40 to 60 C
Blade Dimensions 2.5 in dia x 5.52 in L
