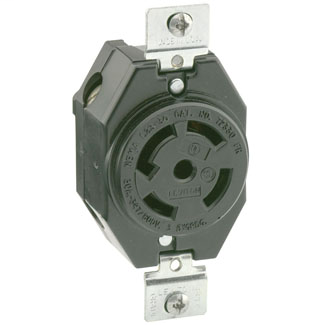

LEV 2820 #2CD LKG RECPT.
$83.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2820
North Coast Part # 215876

Specifications

Material Specifications

  • Line Contacts: Brass
  • Face Material: Nylon
  • Color: Black
  • Cover Material: Valox 357
  • Ground Contacts: Brass
  • Base Material: Nylon
  • Grounding Screw: Chromated Brass
  • Terminal Screws: Chromated Brass
  • Body Material: Nylon
  • Terminal Clamps: Nickel-Plated Brass
  • Strap Material: Nickel-Plated Brass

Warranty

  • Warranty: Lifetime Limited

Standards and Certifications

  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL: 498
  • CSA: C22.2 No. 42
  • ANSI: C-73
  • UL Fed Spec: W-C-596

Electrical Specifications

  • Amperage: 30 A
  • Wire: 5
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 4
  • Current Limiting: Full Rated Current
  • Voltage: 277/480 VAC
  • Grounding: Grounding
  • Phase: 3-Phase WYE

Product Features

  • Warranty: Lifetime Limited
  • Face Material: Nylon
  • NEMA: L22-30R
  • Color: Black
  • Brand: V-0-Max
  • Country Of Origin: Mexico
  • Base Material: Nylon
  • Device Type: Locking Receptacle

Mechanical Specifications

  • Terminal ID: Marked on Device
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 14-8 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • At Rated Voltage: 10 HP

Environmental Specifications

  • Environment: Corrosive
  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847707718
GTiN 00078477077184
Warranty Length Lifetime
Size 3.62 H x 1.70 W x 1.43 D IN
Color Black
Operating Temperature -40 C
Voltage 480 Volt
Type Flush Mount Locking Receptacle
Material PBT
Applications For Commercial
Mounting Type Box, Flush
Country of Origin Mexico
Wire Size 14-8 AWG
Standard ANSI C-73
Connection Type Back and Side Wired
Horsepower 10 hp
Base Material Nylon
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 5
NEMA L22-30R,WD-6,WD-1
Number of Phases 3
Dielectric 2000 V
Environment Corrosive
Flamability Class Rated V-0 Per UL 94
Grounding Grounding
TC Connection Back Wired;Side Wired
Amperage 30 Amp
Dielectric Strength 2000 V
Environmental Conditions Flammability (Rated V-2 per UL94),Flammability (Rated V-0 Per UL94)
CSA C22.2 No. 42
Number of Poles 4 Pole
Number of Wires 5
Temperature Rise 200 %
Device Type Locking Receptacle
Cover Material Valox 357
Sub Brand V-0-Max
Conductor Size 14-8 AWG
Grade Commercial
Blade Dimensions 3.62 in H x 1.7 in W x 1.43 in D
