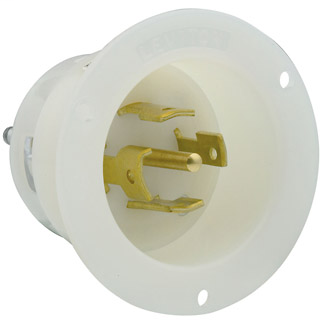

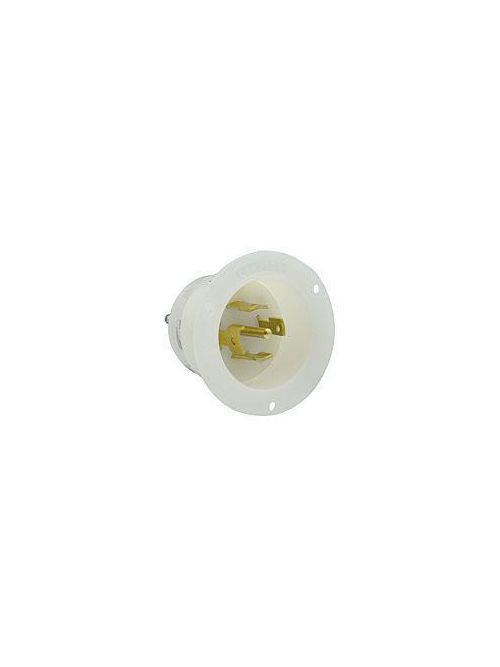

LEV 2825 #2CD_FLANGED INLET

Specifications

Material Specifications

• Line Contacts: Solid Brass
• Face Material: Nylon
• Color: White
• Strap Material: Thermoplastic Nylon
• Grounding Screw: Brass 8-32
• Terminal Screws: Brass 10-32
• Body Material: Nylon

Standards and Certifications

• Warranty: Limited Lifetime Warranty
• NOM: 057
• CSA C22.2 No. 42: File LR-406
• UL498: File E13393
• ANSI: C-73
• UL Fed Spec WC-596: File E13393
• NEMA: WD-6

Electrical Specifications

• Amperage: 30 A
• Wire: 5
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Pole: 4
• Current Limiting: Full Rated Current
• Voltage: 277/480 VAC
• Grounding: Grounding
• Phase: 3-Phase WYE

Product Features

• Color: White
• Device Type: Locking Flanged Inlet
• Brand: Black and White
• Country Of Origin: United States
• NEMA: L22-30P

Mechanical Specifications

• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Product ID: Ratings and NEMA I.D. permanently marked on device
• Terminal Accom.: 18-10 AWG
• Termination: Back

AC Horsepower Ratings

• At Rated Voltage: 10 HP

Environmental Specifications

• Environment: Dry
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C
