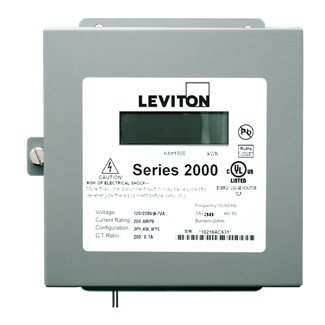

LEV 2N208-11 S2K 3P4W 100:01A IND
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2N208-11
North Coast Part # 681443


  • Measures kWh and demand (optional)
  • Conform to all applicable standards of ANSI C12.1
  • Equipped with an Isolated Pulse Output channel
  • Utilizes revenue grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
  • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
  • Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
  • Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
  • Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
  • Load Indicator LED verifies meter functionality
  • Reverse Phase Indicator LED illuminates if the meter is improperly installed
  • UL/cUL Listed for UL 916 Energy Monitoring Equipment
  • Five year warranty


Electrical Specifications

  • Amperage: 100 A
  • Voltage: 120/240/208 VAC 3PH 4W

Product Features

  • Communication: Pulse Output
  • Country Of Origin: United States
  • CTs Included: No Meter Only
  • Product Line: Series 2000
  • Meter Configuration: Single Meter
  • Enclosure: Indoor (NEMA 1)


GTiN 00078477545188
Voltage 120 Volt
Type Indoor
Communication Type Pulse Output
Applications Commercial, Institutional, Industrial, Government
Country of Origin USA
Standard ANSI C12.1
Wattage 4 Watt
Family Brand Name Leviton
Display Type LCD
Number of Phases 3 Phase
Enclosure Type Indoor (NEMA 1)
Amperage 100 Amp
Accuracy 1 PCT
Enclosure JIC Steel,Surface Mount,Three Element
Product UPC 07847754518
