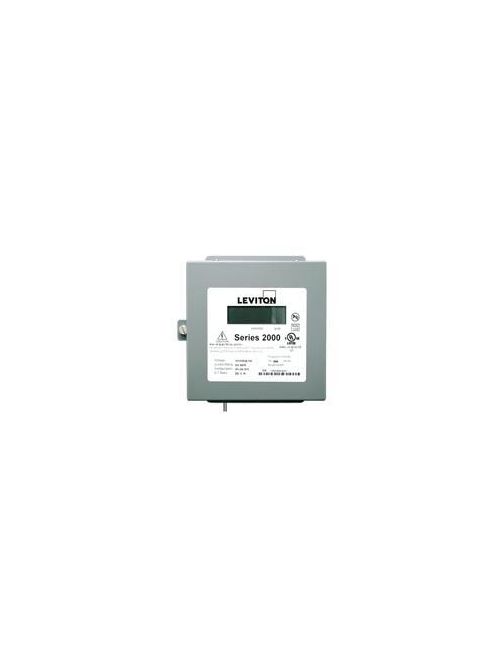

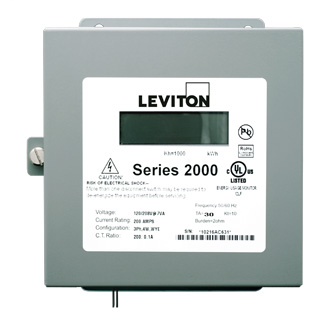

LEV 2N480-121 S2K 2P 3W 1200:01A IN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2N480-121
North Coast Part # 762378


  • Measures kWh and demand (optional)
  • Conform to all applicable standards of ANSI C12.1
  • Equipped with an Isolated Pulse Output channel
  • Utilizes revenue grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
  • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
  • Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
  • Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
  • Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
  • Load Indicator LED verifies meter functionality
  • Reverse Phase Indicator LED illuminates if the meter is improperly installed
  • UL/cUL Listed for UL 916 Energy Monitoring Equipment
  • Five year warranty


UPC 07847754529
Item Long Description Series 2000 277/480V Three Element Meter, 3P4W, Line-to-Line, Indoor, 1200:0.1, Gray
GTiN 00078477545294
Voltage 277 Volt
Type Indoor
Applications Commercial, Institutional, Industrial, Government
Standard ANSI C12.1
Wattage 4 Watt
Family Brand Name Leviton
Display Type LCD
Number of Phases 3 Phase
Amperage 1200 Amp
Accuracy 1 %
Enclosure JIC Steel,Surface Mount,Three Element
