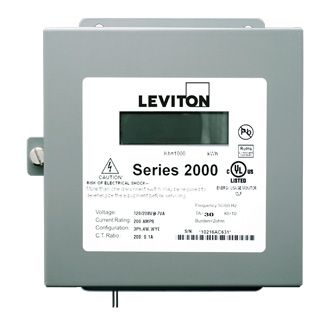

LEV 2N480-41 GY 3ELMT MTR 277/480V

$782.94/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Measures kWh and demand (optional)
Conform to all applicable standards of ANSI C12.1
Equipped with an Isolated Pulse Output channel
Utilizes revenue grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
Load Indicator LED verifies meter functionality
Reverse Phase Indicator LED illuminates if the meter is improperly installed
UL/cUL Listed for UL 916 Energy Monitoring Equipment
Five year warranty

UPC	07847754526
Item Long Description	Series 2000 Three Phase Meter
GTiN	00078477545263
Voltage	277 Volt
Type	Indoor
Communication Type	Pulse Output
Applications	Commercial, Institutional, Industrial, Government
Country of Origin	USA
Standard	ANSI C12.1
Wattage	4 Watt
Family Brand Name	Leviton
Display Type	LCD
Number of Phases	3 Phase
Enclosure Type	Indoor (NEMA 1)
Amperage	400 Amp
Accuracy	1 PCT
Enclosure	JIC Steel,Surface Mount,Three Element
