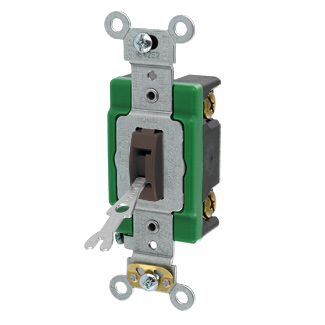

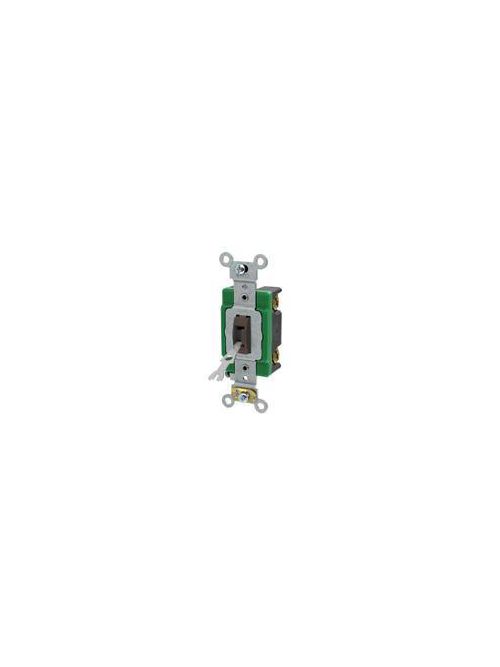

Leviton 3031-2L 120/277 VAC 30 Amp 1-Pole 2 Hp Brown Thermoplastic Self Grounding Locking Toggle Quiet Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$45.12/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 3031-2L
North Coast Part # 549845

Specifications

Material Specifications

  • Ground Clips: Brass
  • Color: Brown
  • Cover Material: Thermoplastic
  • Strap Material: Steel
  • Base Material: Thermoplastic
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 8-32
  • Toggle: Polycarbonate
  • Contact Material: Silver Alloy

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL Fed Spec WS896E: File #E7458
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105
  • RoHS: Compliant

Electrical Specifications

  • Amperage: 30 A
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Maximum 30 degress C rise
  • Endurance: 50,000 cycles minimum
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Function: Single-Pole
  • HP Rating: 2HP-120V 2HP-240V-277V
  • Color: Brown
  • Strap Material: Steel
  • Country Of Origin: Mexico
  • Grade: Extra Heavy-Duty Industrial Specification Grade
  • Device Type: Tamper-Resistant Toggle Switch
  • Body Material: Thermoplastic
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
  • Torque Range: 12-14 inch pounds
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • Max. Amperage: 24 Amp
  • HP Rating: 2HP-120V 2HP-240V-277V

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 65°C

Categories

Overview

UPC 07847777230
Item Long Description 30 Amp, 120/277 Volt, Toggle Locking Single-Pole AC Quiet Switch, Extra Heavy Duty Grade, Self Grounding, Brown
GTiN 00078477772300
Warranty Length 10 yr
Size 46 H x 1.31 W x 13 D IN
Color Brown
Operating Temperature -40 C
Voltage 120/277 Volt
Type Single-Pole AC Quiet Switch
Applications Commercial
Mounting Type Wallplate
Grade Industrial
Country of Origin Mexico
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Torque 12-14 lb-in
Horsepower 2 hp
Base Material Thermoplastic
Body Material Thermoplastic
Toggle Material Polycarbonate
Family Brand Name Leviton
Insulation Material Thermoplastic
NEMA WD-1,WD-6
Dielectric 1500 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
Contact Material Silver Alloy
TC Connection Back Wired;Side Wired
Actuator Key
Amperage 30 Amp
Max Current 24 A
Environmental Conditions Flammability (Rated V-2 Per UL94)
Contact Rating 120 V
Number of Poles 1 Pole
Temperature Rise 30 C
Device Type Tamper-Resistant Toggle Switch
Enclosure Thermoplastic
Cover Material Thermoplastic
Action SP
Operating Cycles 50000
Material Thermoplastic
Blade Dimensions 1.31 in W x 13 in D x 46 in H
