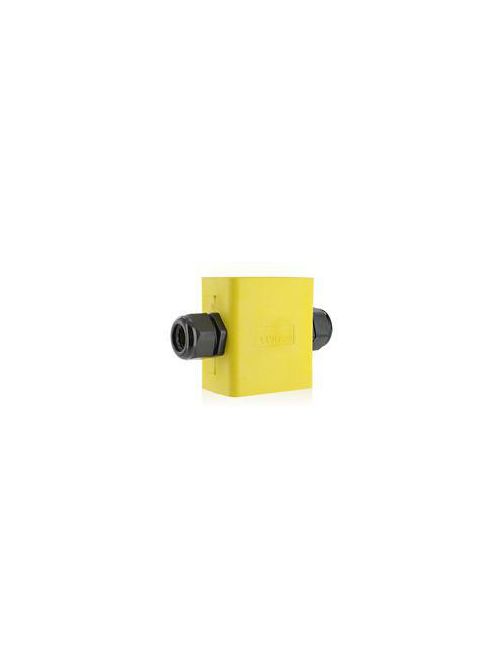

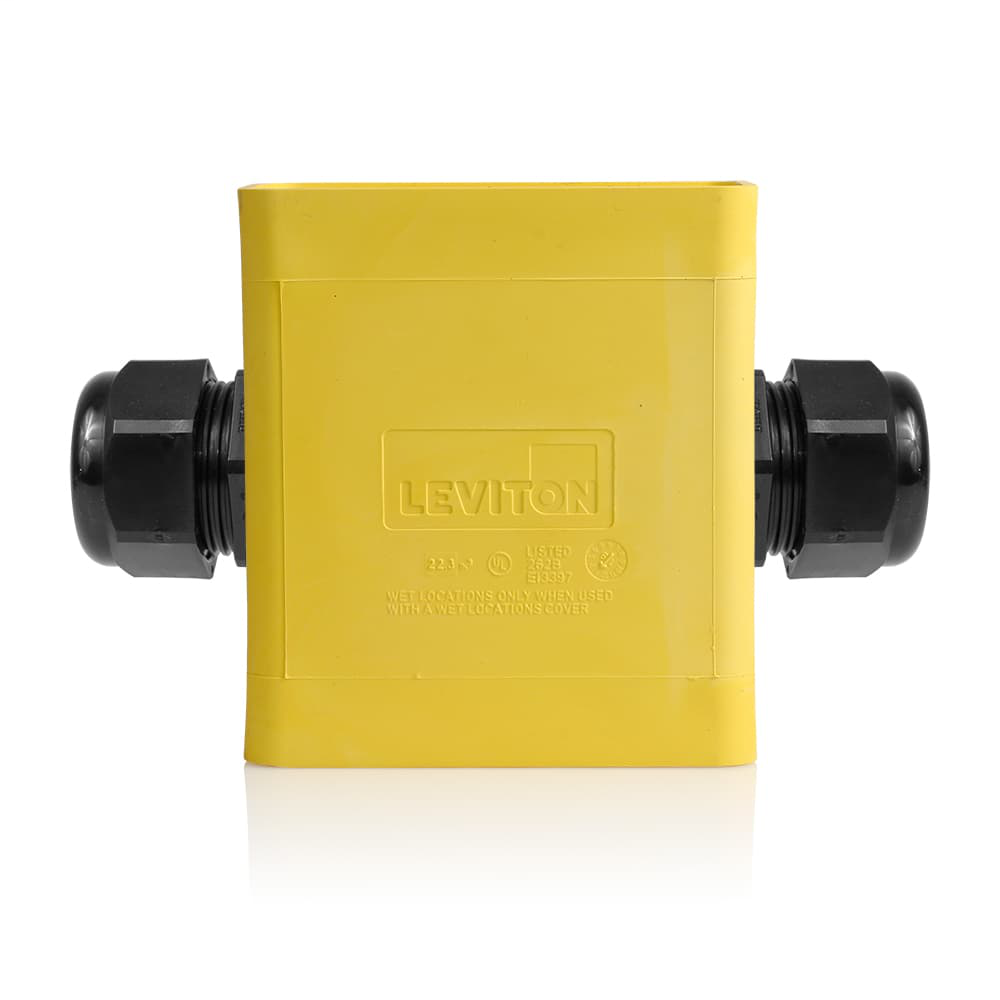

LEV 3099F-2Y 1G RUBBER BOX FEED THR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$110.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 3099F-2Y
North Coast Part # 754698

Specifications

Material Specifications

  • Locking Nut: Steel
  • Box Material: Santoprene™ TPV
  • Strain Relief: Nylon
  • Screw Inserts: Nylon

Standards and Certifications

  • RoHS: Compliant
  • UL Listed: 514C

Product Features

  • Style: Feed-Through
  • Color: Yellow
  • Country Of Origin: Mexico
  • Box Volume: 22.3 cu in
  • Device Type: Box
  • Gang: 1

Environmental Specifications

  • Flammability: Rated V-2 (Strain Relief), V-0 (Box) per UL 94
  • Operating Temperature: -20⁰C to 100⁰C

Overview

UPC 07847740893
GTiN 00078477408933
Length 3.900 in
Width 2.500 in
Color Yellow
Operating Temperature -20 To 100 C
Type Portable Outlet Box
Applications Commercial
Height 4.375 in
Country of Origin Mexico
Cable Size 0.590 - 1 IN
Standard RoHS Compliant,UL Listed 514C
Family Brand Name LEVITON
Flamability Class Rated V-2 Per UL 94,Rated V-0 Per UL 94
Number of Gangs 1 Gang
Environmental Conditions Strain Relief Flammability (Rated V-2 per UL94),Box Flammability (Rated V-0 per UL94)
Device Type Box
