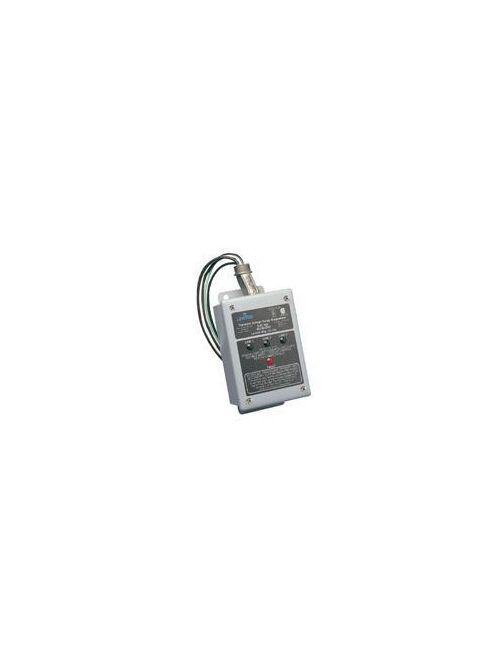

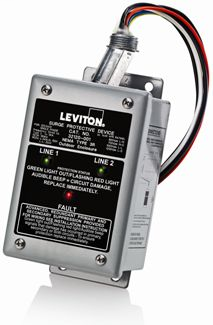

LEV 32277-DY3 TVSS 277/480V 220/380
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$912.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 32277-DY3
North Coast Part # 210961

Specifications

Material Specifications

  • Outer Enclosure: Powder Coated Steel

Warranty

  • Warranty: 5-Year Limited

Product Features

  • Replaceable Modules: No
  • MCOV: 320V AC
  • Country Of Origin: Mexico
  • UL1449 Impluse 6kV/500A L-N/N-G/L-L: 900/800/1500
  • Diagnostics: LED

Standards and Certifications

  • ANSI/IEEE Category A, B & C: C-62.41 & 62.45
  • UL 1449 4th Edition: cULus Listed Type 2

Performance Data

  • Nominal Discharge Current Rating: 3kA
  • Short Circuit Current Rating: 100kA
  • MCOV L-L: 552
  • MCOV L-N: 320
  • VPR L-L: 1800
  • VPR L-N: 1200
  • Maximum Surge Current, Per Mode (Per Phase): 80kA (160kA)
  • VPR N-G: 1200
  • MCOV L-G: 640
  • MCOV N-G: 320
  • VPR L-G: 2000

Mechanical Specifications

  • Diagnostics: LED
  • Surge Counter: No
  • Remote Monitoring: Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
  • Connection Type: Parallel - Hardwired via 12 AWG Wire

Electrical Specifications

  • Frequency: 50/60Hz
  • Recommended Circuit Breaker Rating: 30A, 277/480V
  • EMI/RFI Noise Rejection: (-20 to -40 @ 1.5K - 1.2MHz)
  • Voltage Configuration: 220/380 V or 277/480 V, 3-Phase WYE; 240 V or 480 V, 3-Phase Delta
  • Surge Technology: 40mm MOV Design

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -10°C to 60°C
  • Enclosure: Type 3R
  • Relative Humidity: 5% to 95% non-condensing
  • Storage Temperature Range: -20C to 85C

videos

Categories

Overview

UPC 07847784659
Item Long Description 277/480 Volt, 220/380 Volt, 480 Volt 3-Phase Wye Or Delta, Surge Panel, DHC and X10 Compatible, 80Ka L-N Max Surge Current
GTiN 00078477846599
Warranty Length 5 yr
Size 7.50 H x 4.25 W x 3.25 D IN
Operating Temperature -10 C
Voltage 220/380 Volt
Type Type 2 SPD
Material Powder Coated Steel
Applications Commercial
Country of Origin Mexico
Standard ANSI\IEEE (Category C-62.41, C-62.45),CULus Listed (1449),NEMA
Frequency 50/60 Hz
Connection Type Parallel
Family Brand Name Leviton
NEMA 3R
Number of Phases 3 Phase
Flamability Class Rated V-2 Per UL 94
TC Connection Parallel Hardwired via 12AWG wire
Short Circuit Current 100 kA
Environmental Conditions Humidity (5 To 95 Non-Condensing) %
Indicator Noise Filtering
Storage Temperature -20 To 85 C
