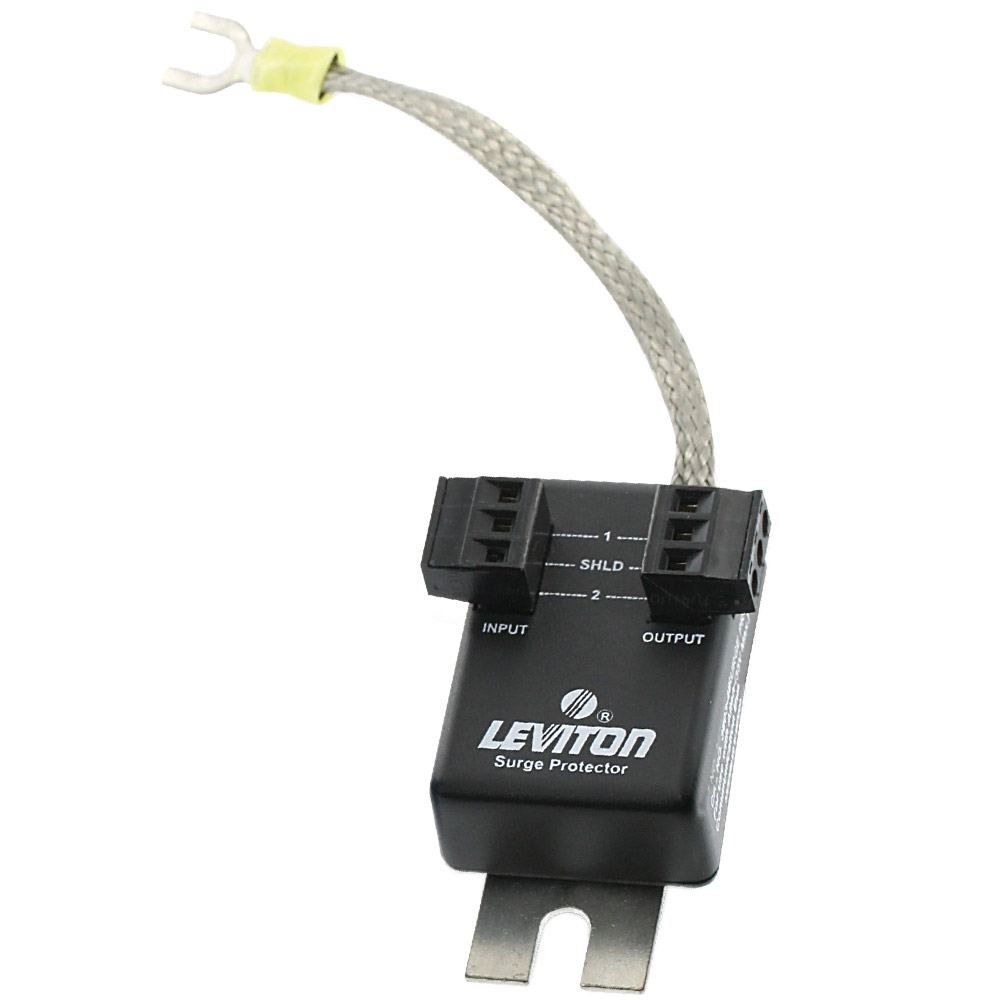

LEV 3420-9 TVSS FOR SIGNL LOOP 38V
$165.27/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 3420-9
North Coast Part # 1834243

Specifications

Material Specifications

  • Ground Tab Material: Plated Steel
  • Case Material: ABS

Warranty

  • Warranty: 5-Year Limited

Standards and Certifications

  • UL: 497B Listed
  • CE: Marked

Performance Data

  • Clamping Voltage: 12Vpk
  • Maximum DC Operating Voltage: (-)4.5 to 4.5
  • Voltage: 9.6 VDC
  • Maximum Surge Current: 1kA
  • Maximum Capacitance: 53pF (L-G) 53pF (L-L)

Environmental Specifications

  • Altitude: -1,000 to 15,000 ft
  • Storage Temperature: -40C to 90C
  • Operating Temperature: -40°C to 60°C
  • Relative Humidity: 0 to 95% Non-Condensing

Categories

Overview

UPC 07847797754
GTiN 00078477977545
Warranty Length 5 yr
Size 2.26 H x 1.51 W x 0.79 D IN
Operating Temperature -40 C
Voltage 9.6 Volt
Type Low Voltage, Transient Voltage
Material ABS
Applications For Industrial
Mounting Type Surface
Standard CE Marked,ISO (9001:2000),UL Listed (497B) Listed
Temperature Rating -40 to 90 C Storage, -40 to 60 C Operating
Family Brand Name Leviton
Blade Dimensions 1.51 in W x 0.79 in D x 2.26 in H
Environmental Conditions Humidity (0 To 95% Non-Condensing),Storage Temperature (-40 To +90 DEGC)
Used With Signal Loop Network
Storage Temperature -40 To 90 C
