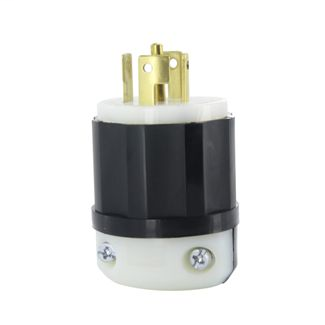

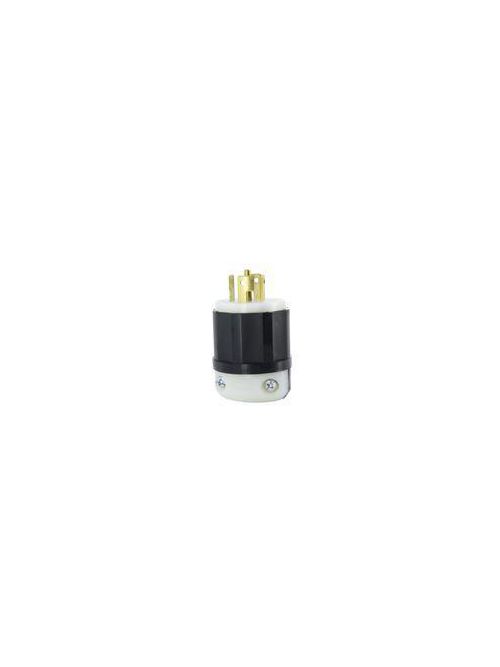

LEV 3521-C IND/LKG PLUG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$65.27/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 3521-C
North Coast Part # 752525

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: Black-White
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Impact Modified Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • ANSI: C-73
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • NEMA: WD-6

Product Features

  • Color: Black-White
  • Brand: Black and White
  • Country Of Origin: United States

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .595 - .895
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Wire Gauge: 14-10 AWG
  • Terminal Accom.: 18-10 AWG

Electrical Specifications

  • Amperage: 20/10 A
  • Wire: 5
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
  • Pole: 4
  • Voltage: 250 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated HB or better UL94
  • Operating Temperature: -40°C to 60°C

videos

Categories

Overview

UPC 07847782952
Item Long Description 20/10-Amp, 250-Volt AC/DC/600-Volt Ac, Locking Plug, Industrial Grade, Grounding, Black-White
GTiN 00078477829523
Warranty Length Lifetime Limited
Size 2.22 Dia x 2.70 H IN
Color Black,White
Operating Temperature -40 C
Voltage 250 Volt
Type Locking Plug
Material Super Tough Nylon
Applications Industrial
Mounting Type Cable
Country of Origin USA
Wire Size .630-1.150 in
Standard ANSI C-73
Blade Type Solid Brass
Body Material Impact Modified Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 5
NEMA WD-6
Dielectric 2000 V
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Grounding
Contact Material Solid Brass
Amperage 10 Amp
Environmental Conditions Operating Temperature Range (-40 to 60) C
Number of Poles 4 Pole
Number of Wires 5
Temperature Rise 200 %
Sub Brand Black & White
