LEV 35349-TFB 20A 2GANG FLRBOX BRAS
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$237.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 35349-TFB
North Coast Part # 1342320

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Triple-Wipe .031 Thick
  • Face Material: Nylon
  • Floorplate Material: Solid Brass 0.060 In Thick
  • Color: Ivory
  • Shutter Mechanism: Delrin® Acetal
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 8-32
  • Body Material: Nylon
  • Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File E152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Amperage: 20 A
  • Color: Ivory
  • Country Of Origin: Mexico
  • NEMA: 5-20R
  • Voltage: 125 VAC

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

videos

Overview

UPC 07847774215

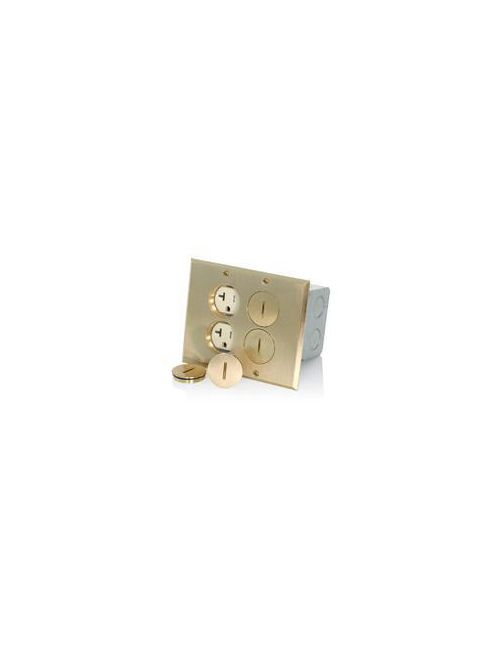

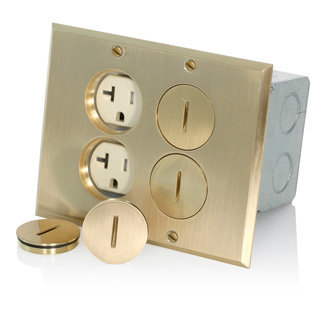

Item Long Description Floor Box Assembly, 2-gang, Includes Brass Floor Plate, Gasket (1), Screw Caps (4), O - Ring (4), Electrical Box (1) And Ivory Tamper Resistant Duplex Receptacles (2 - TBR20-I) 20A-125V, 2-pole, 3-wire, Grounding, Nema 5-20r.
GTiN 00078477742150
Warranty Length 10 yr
Color Ivory
Operating Temperature -40 C
Voltage 125 Volt
Type Receptacle
Country of Origin Mexico
Standard ANSI C-73
Horsepower 1 hp
Face Material Nylon
Body Material Nylon
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
