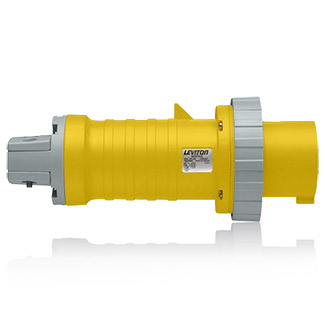

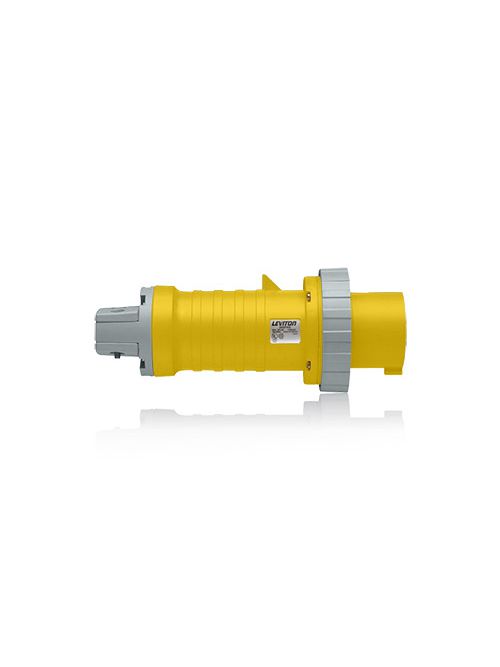

LEV 360P4W PLUG WTRTIGHT P/S 2PO3WI
Product image thumbnail 0
Product image thumbnail 1
$433.74/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 360P4W
North Coast Part # 602346

Specifications

Material Specifications

  • Internal Cord Clamp Assembly: Thermoplastic
  • External Screws: Acid-Proof S/S
  • Phase and Ground Pins: Brass
  • Locking Ring: Valox 357
  • Terminal Screws: Steel
  • Grommet/Gasket: Chloroprene
  • Body Material: Valox 357
  • Gland Cap: Valox 357
  • External Cord Clamp Assembly: Valox 357
  • Internal Screws: Zinc-plated steel
  • Contact Carrier: Reinforced Nylon

Standards and Certifications

  • Warranty: 2-Year Limited
  • CSA Certified: C22.2 No 182.1
  • CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC
  • IEC Rating: 60309-1 and 60309-2
  • UL Listed: 1682 and 1686

Product Features

  • Color: Yellow
  • Device Type: Plug
  • Configuration: North American
  • Country Of Origin: Please Contact Customer Service.

Mechanical Specifications

  • Minimum Withdrawal Force: 15lbs
  • Cord Range: .670 - 1.625
  • Cable Secureness: Force: 150lb, Torque: 1.0 ft-lb, Max Disp: <= 3/32"
  • Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs
  • Crush Test: 250lbs for 1 min after -25°C for 6 hrs

Electrical Specifications

  • Amperage: 60 A
  • Wire: 3
  • Dielectric Voltage: 2000V for 1 min.
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Endurance: Up to 1000 connects and disconnects, under load, at full rated current and voltage
  • Pole: 2
  • Insulation Resistance: 500V for 1 min; >= 5MΩ
  • Voltage: 125 VAC

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
  • Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25°C water
  • IP Rating: IP67/IP69K

Overview

UPC 07847783807
GTiN 00078477838075
Warranty Length 2 yr
Size 4.49 Diameter x 10.83 L IN
Color Yellow
Voltage 125 Volt
Type Watertight Plug
Material Valox 357
Applications Industrial
Mounting Type Cable
Wire Size 8-4 AWG
Rating IEC 60309-1,IEC 60309-2
Standard CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC,CSA Certified (C22.2 No 182.1),IEC Rating (60309-1 And 60309-2),UL Listed (1682 And 1686)
Connection Type Screw Terminal
Body Material Valox 357
Family Brand Name Leviton
Wire Count 3
Dielectric 2000 V
Flamability Class Rated V-0 Per UL 94
TC Connection Screw Terminal
Amperage 60 Amp
IP Rating IP67,IP69K
Environmental Conditions Flammability (Rated V-2 Per UL94),Humidity (32C, 93%, 168 Hours)
CSA C22.2 No 182.1
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Plug
