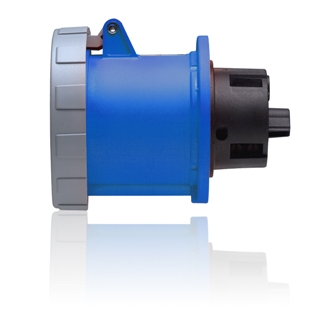

Leviton 360R6W 250 Volt 60 Amp 2-Pole 3-Wire Blue Resin 357 IP67 IEC Pin and Sleeve Receptacle

$411.80/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

Amperage: 60 A
Wire: 3
Dielectric Voltage: 2000V for 1 min.
Current Interrupting: Certified for current interrupting at full rated current
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Endurance: Up to 1000 connects and disconnects, under load, at full rated current and voltage
Pole: 2
Insulation Resistance: 500V for 1 min; >= 5MΩ
Voltage: 250 VAC

Flammability: Rated V-0 per UL 94
Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25°C water
IP Rating: IP67/IP69K

UPC	07847783787
Item Long Description	60 Amp, 250 Volt, IEC 309-1 & 309-2, 2P, 3W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, - Blue
GTiN	00078477837870
Warranty Length	2 yr
Size	4.37 H x 5.39 D IN
Color	Blue
Voltage	250 Volt
Type	Pin & Sleeve Watertight Receptacle
Applications	Industrial
Mounting Type	Flange Mount
Wire Size	3 AWG
Rating	IEC 60309-1,IEC 60309-2
Standard	IEC Rated 60309-1 And 60309-2,CSA Certified C22.2 No 182.1, Per Low Voltage Directives 73\23\EEC, 93\68\EEC,UL Listed 1682 And 1686
Body Material	Valox 357
Family Brand Name	Leviton
Wire Count	3
Dielectric	2000 V
Flamability Class	Rated V-0 Per UL 94
Amperage	60 Amp
IP Rating	IP69K,IP67
Environmental Conditions	32 C
CSA	C22.2 No 182.1
Number of Poles	2 Pole
Temperature Rise	Max 30DEG C (After 50 Cycles OL at 150 PCT Rated Current)
Device Type	Receptacle
Interrupt Rating	IP67 Watertight
Action	DP
