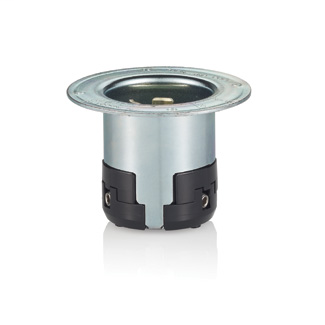

LEV 3777 50A LCKG FLANGED INLET
Product image thumbnail 0
Product image thumbnail 1
$134.89/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 3777
North Coast Part # 761927

Specifications

Material Specifications

  • Body & Contract Carrier: Reinforced Nylon
  • Inlet Blade: 0.100inch thick Brass
  • Color: Gray Metal
  • Terminal Block: 0.062inch thick Copper
  • Terminal Set Screw: SS 302/304
  • Flanged Casing: Zinc Plated Steel
  • Ground Shunt: Bronze
  • Grounding Shunt Rivet: Brass
  • Face Module: Nylon

Standards and Certifications

  • Warranty: Lifetime Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • RoHS: Compliant
  • UL498: File E13399

Product Features

  • Color: Gray Metal
  • Device Type: Locking Flanged Inlet
  • Brand: Black and White
  • Country Of Origin: Mexico
  • NEMA: Non-NEMA

Mechanical Specifications

  • Terminal ID: X, W, Y, Z and Green for ground
  • Product ID: Ratings and Catalogue No. molded into face
  • Terminal Accom.: #10 min to #4max AWG Solid or Stranded Wire

Electrical Specifications

  • Amperage: 50 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Grounding: Grounding
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
  • Pole: 2
  • Voltage: 250 VAC
  • Maximum Working Voltage: 250V DC/600V AC as rated

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 75°C

Overview

UPC 07847733185
GTiN 00078477331859
Warranty Length Lifetime
Color Gray Metal
Operating Temperature -40 C
Voltage 250 Volt
Type Locking Flanged Inlet
Thickness .1 in
Applications Industrial
Mounting Type Flanged
Country of Origin Mexico
Standard CSA C22.2 No. 42 (152105),NOM Certified (057),RoHS Complaint,UL498 (E13399)
Temperature Rating -40 To 75 C
Family Brand Name LEVITON
Terminal Size 062 IN
Wire Count 3
NEMA Non-NEMA
Dielectric 2000 V
Environment Dry
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
Amperage 50 Amp
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Locking Flanged Inlet
Sub Brand Black & White
