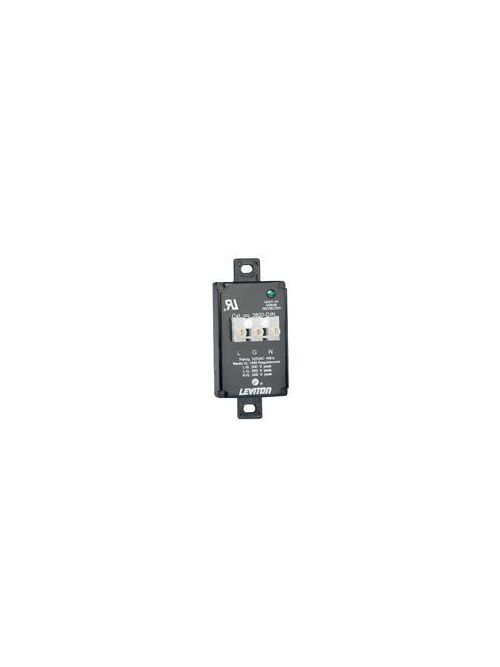

LEV 3800-DIN TVSS 120V AS RAIL MT
Product image thumbnail 0
Product image thumbnail 1
$82.74/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 3800-DIN
North Coast Part # 70899

Specifications

Material Specifications

  • Enclosure Material: Polycarbonate

Warranty

  • Warranty: 10-Year Limited

Product Features

  • Noise Rejection: -35 dB at 5kHz-5MHz
  • Country Of Origin: Mexico
  • Wiring: Terminal Block
  • Standards and Certifications: UL1449 / CSA / ANSI/IEEE Cat ABC
  • UL1449 Impulse Perm Wired Test L-N/L-G/N-G: 500/500/500
  • Max 1-Pulse Transient Current L-N/L-G/N-G: 1.3kA/6.5kA/6.5kA
  • Circuitry: MOV-Based Suppression
  • Voltage: 120 VAC
  • Diagnostics: LED
  • Joules Rating: 280
  • MCOV: 135V AC

Standards and Certifications

  • NOM: ETL Certified to NOM-001
  • Agency Certifications: UL & CSA Recognized Components
  • ANSI/IEEE Category A & B: C-62.41 & C-62.45

Performance Data

  • Protection Mode: 3 Mode
  • Nominal Discharge Current Rating: 3kA
  • VPR: L-N:700V, L-G:700V, N-G:600V
  • Maximum Surge Current, Per Mode (Per Phase): 36kA (L-N:24kA, L-G:12kA)
  • Noise Filtering: -10dB to -15dB (@100K-100MHz)
  • Joules Rating: 280
  • MCOV: 135V AC

Mechanical Specifications

  • Diagnostics: LED
  • Connection Type: Terminal Block - Accommodates 12 or 14 AWG Wire

Electrical Specifications

  • Surge Technology: MOV
  • Frequency: 50/60Hz
  • Voltage: 120 VAC

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -10°C to 60°C
  • Storage Temperature: -20°C to 85°C
  • Relative Humidity: 5% to 95% non-condensing

Overview

UPC 07847786881
GTiN 00078477868812
Warranty Length 10 yr
Size 3.78 H x 1.66 W x 1.58 D IN
Operating Temperature -10 C
Voltage 120 Volt
Type Type 4
Material Polycarbonate Enclosure
Applications For Commercial Use
Mounting Type DIN Rail
Country of Origin Mexico
Standard ANSI,CSA,IEEE Cat ABC,UL 1449
Frequency 50/60 Hz
Connection Type Terminal
Family Brand Name Leviton
Flamability Class Rated V-0 Per UL 94
TC Connection Terminal Block Accommodates 12 or 14 AWG Wire
Environmental Conditions -20 to 85 C Temperature
Indicator Alarm,Indicator Light
Storage Temperature -20 To 85 C
Temperature Rating -10 to 60 C
Number of Poles 2 Pole
Number of Wires 3
Nominal Discharge Current 3 kA
