Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 3803-MOD
North Coast Part # 823092


Material Specifications

  • DIN-Rail Material: Polycarbonate
  • Case Material: ABS
  • Base-Plate Material: Brushed Brass


  • Warranty: 10-Year Limited

Performance Data

  • Clamping Voltage: 12Vpk
  • Maximum DC Operating Voltage: (-)4.5 to 4.5
  • Maximum Surge Current: 1kA
  • Maximum Capacitance: 73pF (L-G) 2.2pF (L-L)

Standards and Certifications

  • UL: 497B Listed
  • CE: Marked

Product Features

  • Noise Rejection: N/A
  • Warranty: 10-Year Limited
  • MCOV: 81V
  • Mounting Type: Surface
  • Country Of Origin: Mexico
  • Standards and Certifications: UL 497B / CSA / ANSI/IEEE / CE
  • Max 1-Pulse Transient Current L-G: 1kA
  • Wiring: 3-Pin Header
  • Circuitry: MOV-Based Suppression
  • Voltage: 9.6 VDC
  • Diagnostics: None
  • Enclosure Rating: NEMA 1
  • Type: Modbus and Modbus Plus Networks

Environmental Specifications

  • Altitude: -1,000 to 15,000 ft
  • Storage Temperature: -40C to 90C
  • Operating Temperature: -40°C to 60°C
  • Relative Humidity: 0 to 95% Non-Condensing


UPC 07847702983

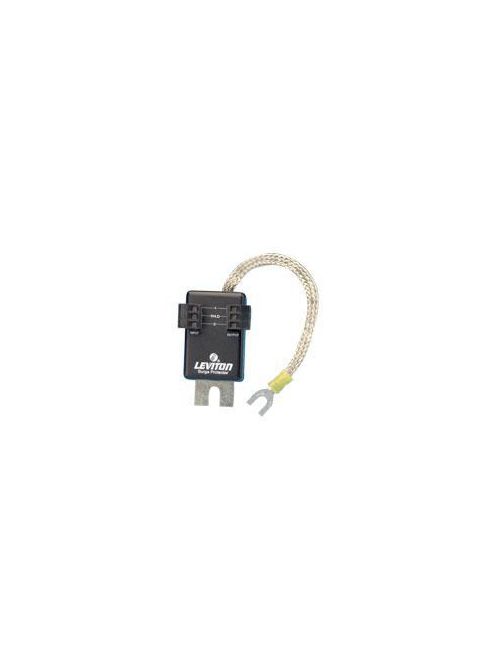

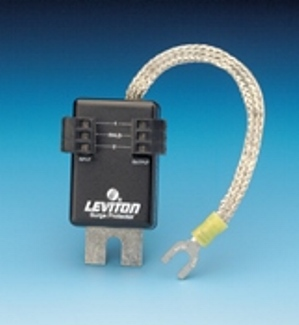

Item Long Description 9.6 Volt DC Pole, Communication Module Surge Protective Device, Modbus and Modbus Plus Networks
GTiN 00078477029831
Warranty Length 10 yr
Size 2.26 H x 1.51 W x 0.79 D IN
Operating Temperature -40 C
Voltage 9.6 Volt
Type Modbus Networks,Modbus Plus Networks
Material ABS Plastic
Applications Industrial
Mounting Type Surface
Country of Origin Mexico
Family Brand Name Leviton
Environmental Conditions Humidity (0 To 95% Non-Condensing),Storage Temperature (-40 To +90 DEGC)
Storage Temperature -40 To 90 C
