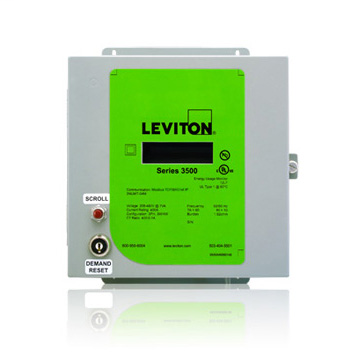

LEV 3NUMT-30M S3NU 3PH 3000:01A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,714.21/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 3NUMT-30M
North Coast Part # 1686388

Features

  • Series 3500: Enabled by Ethernet, uses Modbus TCP/IP and BACnet IP
  • Isolated pulse output
  • Integrates easily with building management systems
  • Highly accurate 0.5% accuracy class
  • Delivers universal voltage performance
  • 208/480V 2PH 2W, 120/208V 2PH 3W, 240/480V 3PH 3W, 120/208V, 277/480V 3PH 4W, 240/480V 3PH 4W DELTA
  • 100-5000 Amps
  • Outputs kWh, Demand - Instant & Peak, Per Phase & Total kWh, kW, kVAR, VAR, AMPS Interval Data
  • Certified to all applicable standards of ANSI C12.1
  • Utilizes split and solid core current transformers (CTs) that are certified to all revenue grade accuracy standards
  • Up to three sets of CTs per phase can be paralleled per meter

Specifications

Electrical Specifications

  • Amperage: 3000 A
  • Voltage: Universal

Product Features

  • Communication: Pulse Output, Ethernet, ModBus TCP/IP, BACnet IP
  • Country Of Origin: United States
  • CTs Included: No Meter Only
  • Product Line: Series 3500
  • Meter Configuration: Single Meter
  • Enclosure: Indoor (NEMA 1)

Overview

UPC 07847763077
GTiN 00078477630778
Length 8.21 in
Width 2.50 in
Type Meter With Ethernet Communication
Communication Type BACnet IP,Ethernet,ModBus TCP/IP,Pulse Output
Applications Commercial
Height 9.66 in
Country of Origin USA
Cable Size 18-14 AWG
Standard ANSI C12.1 And C12.20 (0.5),UL And CUL Listed
Frequency 60 Hz
Temperature Rating -20 To 50 C
Family Brand Name Leviton
Number of Phases 3 Phase
Enclosure Type Indoor (NEMA 1)
Amperage 3000 Amp
Primary Voltage 177 To 552 V
Accuracy 1 PCT
Enclosure JIC Steel
Primary Current 3000 A
Secondary Current 0.11 A
Current Ratio 3000:0.11
