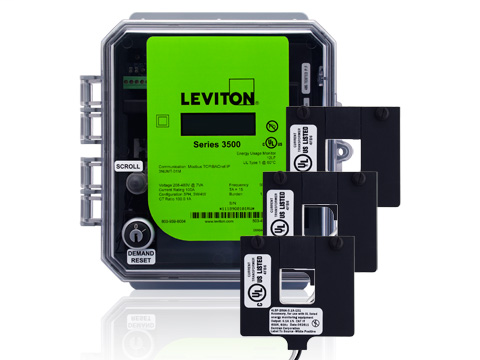

LEV 3OUMT-1M S3KTOMT 3PH 100:01A SP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,080.02/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 3OUMT-1M
North Coast Part # 1690278

Features

  • Series 3500: Enabled by Ethernet, uses Modbus TCP/IP and BACnet IP
  • Isolated pulse output
  • Integrates easily with building management systems
  • Highly accurate 0.5% accuracy class
  • Delivers universal voltage performance
  • 208/480V 2PH 2W, 120/208V 2PH 3W, 240/480V 3PH 3W, 120/208V, 277/480V 3PH 4W, 240/480V 3PH 4W DELTA
  • 100-5000 Amps
  • Outputs kWh, Demand - Instant & Peak, Per Phase & Total kWh, kW, kVAR, VAR, AMPS Interval Data
  • Certified to all applicable standards of ANSI C12.1
  • Utilizes split and solid core current transformers (CTs) that are certified to all revenue grade accuracy standards
  • Up to three sets of CTs per phase can be paralleled per meter

Specifications

Electrical Specifications

  • Amperage: 3 A
  • Voltage: 9.18 VDC

Product Features

  • Communication: Pulse Output, Ethernet, ModBus TCP/IP, BACnet IP
  • Country Of Origin: United States
  • CTs Included: 3 Split Core CTs
  • Product Line: Series 3500 Kit
  • Meter Configuration: Single Meter
  • Enclosure: Outdoor (NEMA 4X)

videos

Overview

UPC 07847763130
GTiN 00078477631300
Length 8.54 in
Width 4.32 in
Type Meter With Ethernet Communication
Communication Type BACnet IP,Ethernet,ModBus TCP/IP,Pulse Output
Applications Commercial
Height 116 in
Country of Origin USA
Cable Size 18-14 AWG
Standard ANSI C12.1 And C12.20 (0.5),UL And CUL Listed
Frequency 60 Hz
Temperature Rating -20 To 50 C
Family Brand Name Leviton
Number of Phases 3 Phase
Enclosure Type Outdoor (NEMA 4X)
Enclosure Rating NEMA 4X
Amperage 3 Amp
Primary Voltage 177 To 552 V
Accuracy 1 PCT
Enclosure NEMA 4X
Primary Current 100 A
Secondary Current 0.11 A
Current Ratio 100:0.11
