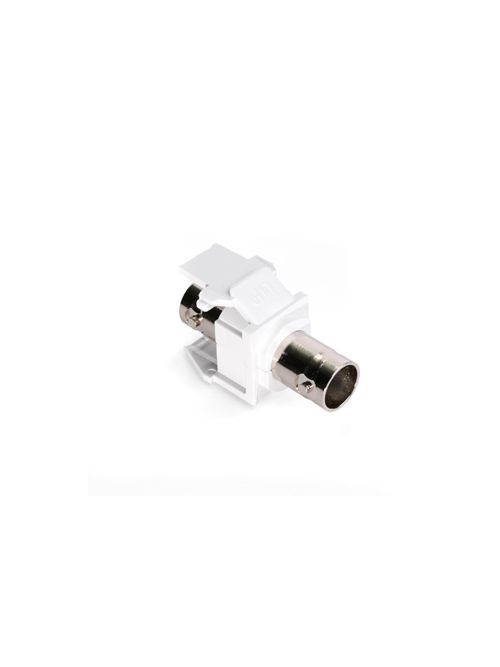

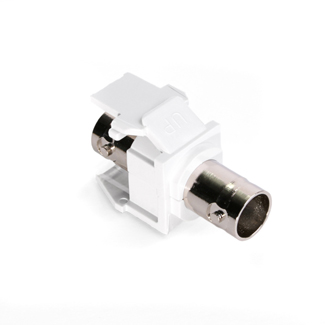

Leviton 41084-BWF 50 Ohm Nickel Plated White Plastic Female-to-Female Twist-On Feed-Through BNC Connector
Product image thumbnail 0
Product image thumbnail 1
$10.80/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 41084-BWF
North Coast Part # 14085

Features

  • Compatible with all QuickPort housings and wallplates
  • Female-female BNC feedthrough connector
  • Available in nickel- and gold-plated finishes
  • 50 ohm impedance

Specifications

Mechanical Specifications

  • Position / Conductor: Female to Female
  • Cable Type: Shielded Video and Data Cable
  • Termination Type: Twist-On Front and Rear BNC Plugs

Environmental Specifications

  • Flammability: Rated V-0 per UL 94

Categories

Overview

UPC 07847781672
GTiN 00078477816721
Size 0.65 H x 0.60 W x 1.40 D IN
Color White
Type BNC Bulkhead Module
Material Nickel-Plated, High Impact Plastic
Applications Commercial, High-End Video, Home Theater, CCTV, LAN
Mounting Type Flush,Surface
Standard CULus Listed
Connection Type Snap-In
Family Brand Name Leviton
Flamability Class Rated V-0 Per UL 94
Installation Surface, Flush
TC Connection Snap-In
Blade Dimensions 0.6 in W x 1.4 in D x 0.65 in H
Environmental Conditions Flammability (Rated V-0 per UL94)
Impedance 50 ?
Sub Brand QuickPort
