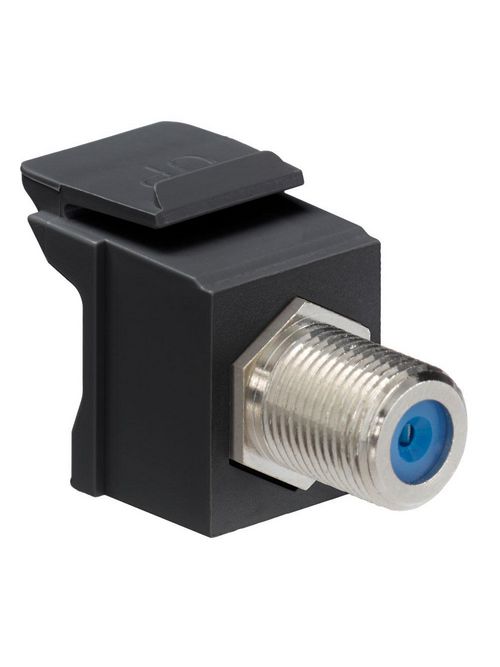

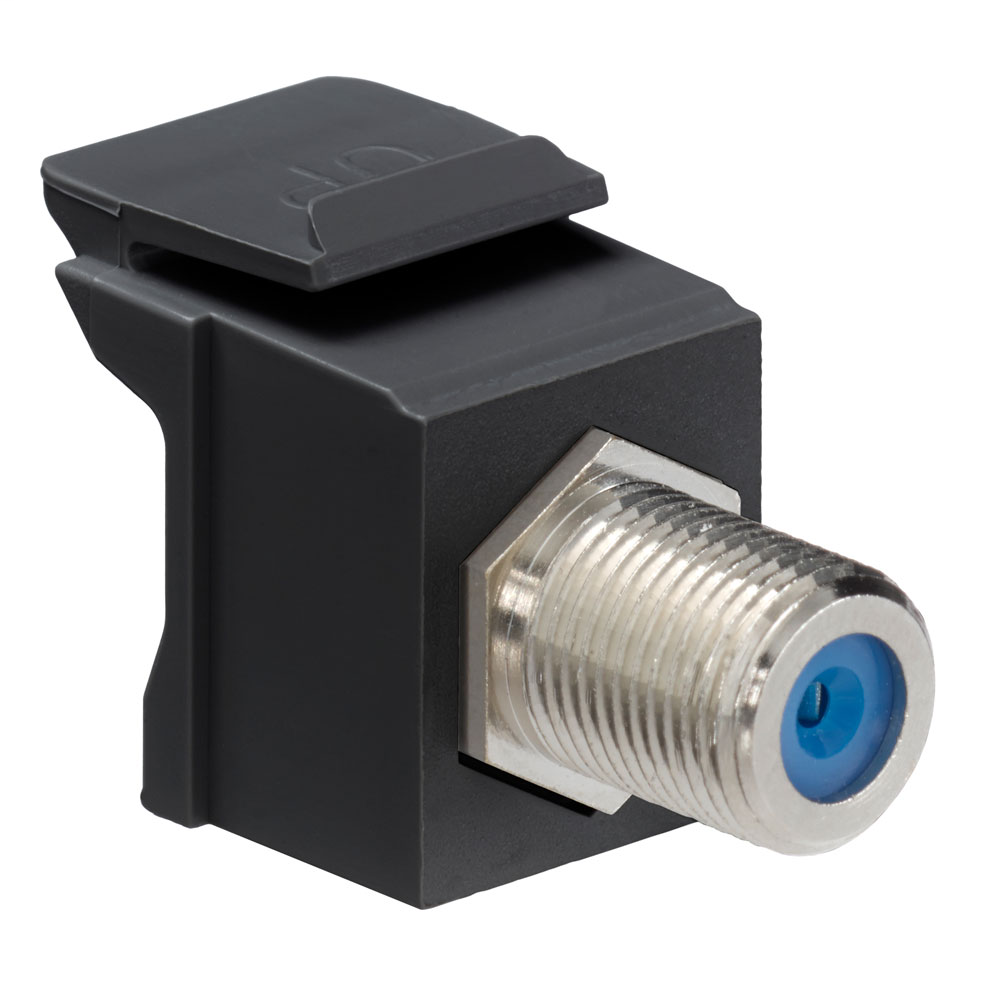

Leviton 41084-FEF 75 Ohm Nickel Plated Black Plastic Female-to-Female Screw-On Feed-Through F-Connector
Product image thumbnail 0
Product image thumbnail 1
$4.29/ea
In Stock | 89 available at 10 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 41084-FEF
North Coast Part # 15935

Features

  • Compatible with all QuickPort wallplates and housings
  • Frequency range equals DC-3.0 GHz
  • Female-female adapter for quick screw-on connections
  • 360-degree gold-plated seizing pin
  • 75 ohm impedance

Specifications

Material Specifications

  • Contact Surface Material: Nickel-Plated
  • Body Material: High-Impact Fire-Retardant Plastic
  • Body Color: Black

Mechanical Specifications

  • Position / Conductor: Female to Female
  • Cable Type: RG-6 RG-59 Coaxial
  • Termination Type: Screw-On Front and Rear F Plugs

Standards and Certifications

  • UL: Certified
  • FCC: Part 68 Compliant
  • NEC: Article 800 Compliant

Environmental Specifications

  • Flammability: Rated V-0 per UL 94

Categories

Overview

UPC 07847782005
GTiN 00078477820056
Size 0.64 H x 0.58 W x 1.24 D IN
Color Black
Type Quickport F-Type Adapter
Material Brass
Applications Commercial
Mounting Type Surface,Flush
Standard CULus Listed, UL Listed
Connection Type Screw, Snap-In
Body Material High-Impact Fire-Retardant Plastic
Family Brand Name Leviton
Insulation Material Incorrect
Flamability Class Rated V-0 Per UL 94
Installation Surface, Flush
TC Connection Snap-In
Blade Dimensions 0.575 in W x 1.19 in D x 0.636 in H
Environmental Conditions UL 94 Requirements, V0 Rated Flammability
Impedance 75 ?
Sub Brand Decora, QuickPort
