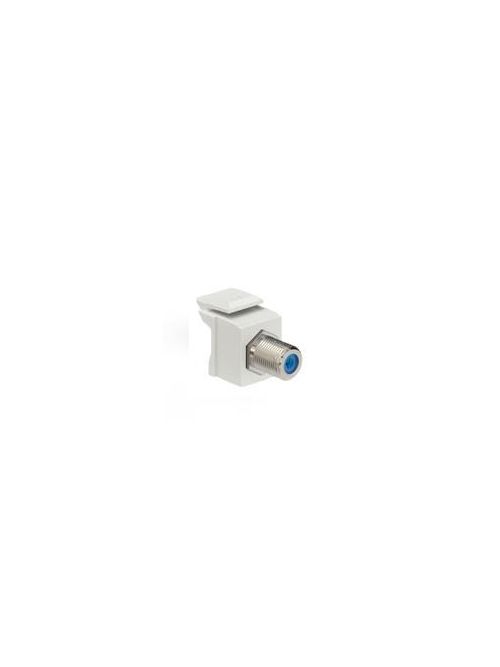

Leviton 41084-FTF 75 Ohm Nickel Plated Light Almond Plastic Female-to-Female Screw-On Feed-Through F-Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.49/ea
In Stock | 92 available at 7 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 41084-FTF
North Coast Part # 17077

Features

  • Compatible with all QuickPort wallplates and housings
  • Frequency range equals DC-3.0 GHz
  • Female-female adapter for quick screw-on connections
  • 360-degree gold-plated seizing pin
  • 75 ohm impedance

Specifications

Material Specifications

  • Contact Surface Material: Nickel-Plated
  • Body Material: High-Impact Fire-Retardant Plastic
  • Body Color: Light Almond

Mechanical Specifications

  • Position / Conductor: Female to Female
  • Cable Type: RG-6 RG-59 Coaxial
  • Termination Type: Screw-On Front and Rear F Plugs

Standards and Certifications

  • UL: Certified
  • FCC: Part 68 Compliant
  • NEC: Article 800 Compliant

Environmental Specifications

  • Flammability: Rated V-0 per UL 94

Overview

UPC 07847727945
GTiN 00078477279458
Size 0.64 H x 0.58 W x 1.24 D IN
Color Light Almond
Type Quickport F-Type Adapter
Material Nickel-Plated Brass
Applications Commercial
Mounting Type Flush,Surface
Standard CULus Listed, UL Listed
Connection Type Snap-In
Body Material High-Impact Fire-Retardant Plastic
Family Brand Name Leviton
Insulation Material Incorrect
Flamability Class Rated V-0 Per UL 94
Installation Surface, Flush
TC Connection Snap-In
Blade Dimensions 0.58 in W x 1.24 in D x 0.64 in H
Environmental Conditions Flammability (Rated V-0 per UL94)
Impedance 75 ?
Sub Brand Decora, QuickPort
