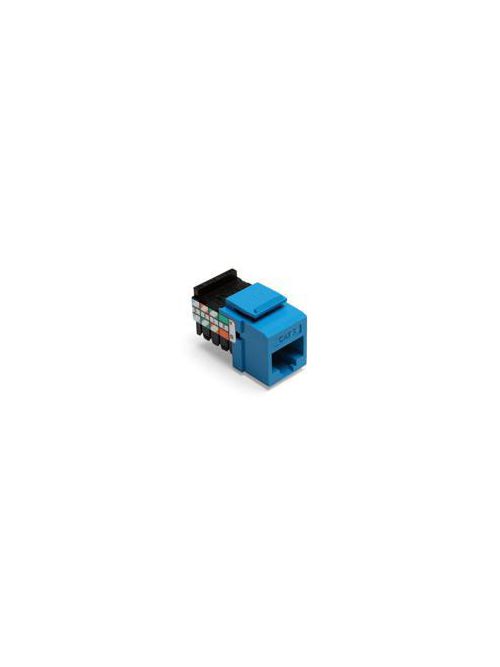

Leviton 41108-RL5 Category 5 Blue Plastic Snap-In 8-Position 8-Conductor UTP Jack Connector
Product image thumbnail 0
Product image thumbnail 1
$8.84/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 41108-RL5
North Coast Part # 218233

Specifications

Material Specifications

  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Body Material: High-Impact Fire-Retardant Plastic
  • Body Color: Blue
  • Contact Base Material: Phosphor Bronze
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated

Performance Specifications

  • Module Type: Category 5

Standards and Certifications

  • UL: Listed
  • TIA/EIA: TIA-568-B
  • FCC: Part 68 Compliant
  • CSA: Certified
  • NEC: Article 800 Compliant

Product Features

  • Warranty: 1-Year Limited
  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Body Color: Blue
  • Module Type: Category 5
  • Color: Blue
  • Position / Conductor: 8P8C
  • Standards and Certifications: TIA/EIA cULus Listed
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Country Of Origin: United States
  • Category Rating: CAT 5
  • Module Style: Connector
  • Termination Type: 110 Punchdown
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
  • Contact Base Material: Phosphor Bronze

Mechanical Specifications

  • Position / Conductor: 8P8C
  • Product ID: Permanently laser-engraved
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Wiring Standard: T568A T568B
  • Termination Type: 110 Punchdown

Environmental Specifications

  • Flammability: Rated V-0 per UL 94

Overview

UPC 07847782658
GTiN 00078477826584
Warranty Length 1 yr
Size 0.83 H x 0.636 W x 1.179 D IN
Color Blue
Type RJ45
Material Phosphor Bronze
Applications Commercial
Mounting Type Flush
Cable Type Category 5
Country of Origin USA
Standard EIA,TIA,cULus Listed
Connection Type 110
Body Material High-Impact Fire-Retardant Plastic
Contact Type 8P8C
Family Brand Name Leviton
Flamability Class Rated V-0 Per UL 94
Contact Material Phosphor Bronze
TC Connection 110
Blade Dimensions 0.63 in W x 1.43 in D x 0.71 in H
Environmental Conditions UL 94 Requirements, V0 Rated Flammability
Number of Positions 8
Category Type CAT 5
Used With Round Cables
Sub Brand QuickPort
