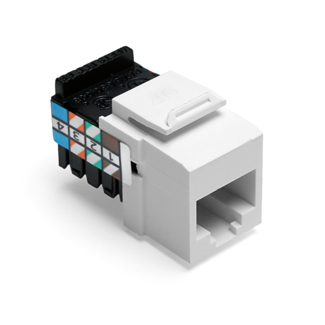

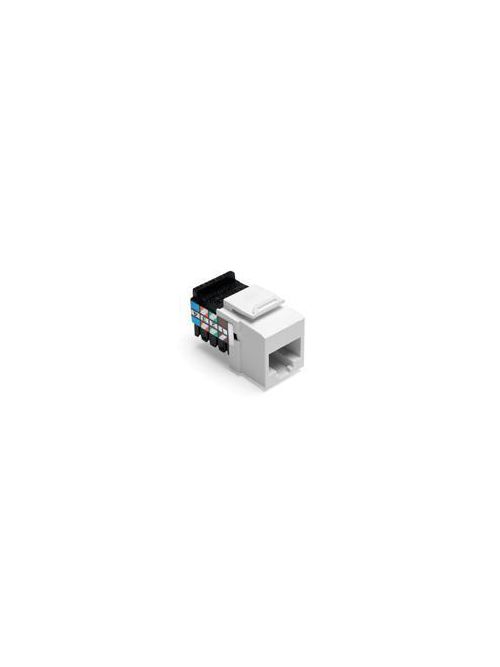

LEV 41108-RW8 JACK 8P8C USOC WH
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 41108-RW8
North Coast Part # 218988

Specifications

Material Specifications

  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Body Material: High-Impact Fire-Retardant Plastic
  • Body Color: White
  • Contact Base Material: Phosphor Bronze
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated

Performance Specifications

  • Module Type: USOC Voice Grade

Standards and Certifications

  • UL: Listed
  • TIA/EIA: TIA-568-B
  • FCC: Part 68 Compliant
  • CSA: Certified
  • NEC: Article 800 Compliant

Product Features

  • Warranty: 1-Year Limited
  • Body Color: White
  • Module Type: USOC Voice Grade
  • Position / Conductor: 8P8C
  • Cable Type: 8-Conductor UTP Copper USOC
  • Country Of Origin: United States
  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Module Style: Connector
  • Termination Type: 110 Punchdown
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
  • Contact Base Material: Phosphor Bronze

Mechanical Specifications

  • Position / Conductor: 8P8C
  • Cable Type: 8-Conductor UTP Copper USOC
  • Termination Type: 110 Punchdown

Environmental Specifications

  • Flammability: Rated V-0 per UL 94

Categories

Overview

UPC 07847783453
Item Long Description Voice Grade QuickPort Connector, 8-Wire, White
GTiN 00078477834534
Warranty Length 1 yr
Size 0.83 H x 0.636 W x 1.179 D IN
Color White
Type Voice Grade Quickport Connector
Applications For Commercial Use
Mounting Type Flush
Country of Origin USA
Standard CSA,FCC Part 68 Compliant,NEC Article 800 Compliant,TIA\EIA-568-B,UL Listed
Connection Type 110
Body Material High-Impact Fire-Retardant Plastic
Contact Type 8P8C
Family Brand Name Leviton
Flamability Class Rated V-0 Per UL 94
Contact Material Phosphor Bronze
TC Connection 110
Environmental Conditions Flammability (Rated V-0 per UL94)
Sub Brand QuickPort
Blade Dimensions 0.636 in W x 1.179 in D x 0.83 in H
Number of Positions 8
