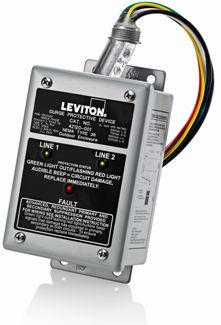

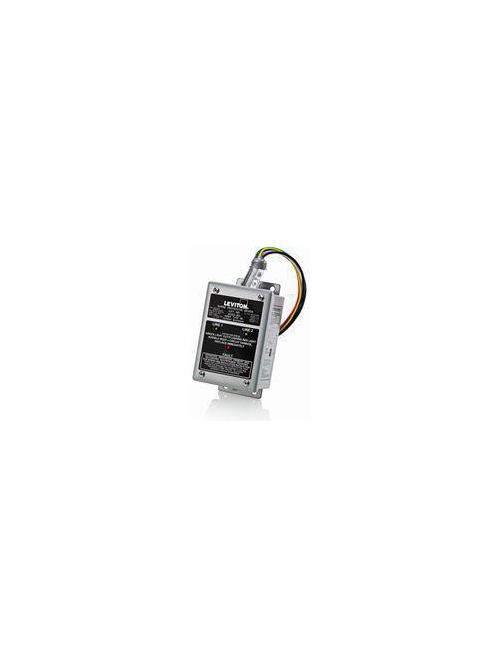

LEV 42120-1 TVSS 1PHASE 120/240V
$892.98/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 42120-1
North Coast Part # 153842

Specifications

Material Specifications

  • Outer Enclosure: Powder Coated Steel

Warranty

  • Warranty: 5-Year Limited

Product Features

  • Replaceable Modules: No
  • Country Of Origin: Mexico

Standards and Certifications

  • ANSI/IEEE Category A, B & C: C-62.41 & 62.45
  • UL1449 3rd Edition: cULus Listed Type 2

Performance Data

  • Nominal Discharge Current Rating: 3kA
  • Short Circuit Current Rating: 100kA
  • MCOV L-L: 254
  • MCOV L-N: 150
  • VPR L-L: 1000
  • VPR L-N: 800
  • Maximum Surge Current, Per Mode (Per Phase): 80kA (160kA)
  • VPR N-G: 700
  • MCOV L-G: 300
  • MCOV N-G: 150
  • VPR L-G: 1200

Mechanical Specifications

  • Diagnostics: Real Time Protection status LEDs & Audible Alarm
  • Surge Counter: No
  • Remote Monitoring: Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
  • Connection Type: Parallel - Hardwired via 12 AWG Wire

Electrical Specifications

  • Frequency: 50/60Hz
  • Recommended Circuit Breaker Rating: 20A, 120/240V
  • EMI/RFI Noise Rejection: (-30 to -40 @ 10K - 10MHz)
  • Voltage Configuration: 120/240 V, Single (Split) Phase
  • Surge Technology: 40mm MOV Design

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -10°C to 60°C
  • Enclosure: Type 3R
  • Relative Humidity: 5% to 95% non-condensing
  • Storage Temperature Range: -20C to 85C

Overview

UPC 07847784657
GTiN 00078477846575
Warranty Length 5 yr
Size 7.50 H x 4.25 W x 3.25 D IN
Operating Temperature -10 C
Voltage 120/240 Volt
Type Type 2, Sine Wave Tracking
Material Powder Coated Steel
Applications Commercial
Country of Origin Mexico
Standard ANSI\IEEE (Category C-62.41, C-62.45),CULus Listed (1449),NEMA
Frequency 50/60 Hz
Connection Type Parallel
Family Brand Name Leviton
NEMA 3R
Number of Phases 1
Flamability Class Rated V-2 Per UL 94
TC Connection Parallel Hardwired via 12 AWG Wire
Short Circuit Current 100 kA
Environmental Conditions -20 to 85 C
Indicator Noise Filtering
Storage Temperature -20 To 85 C
Temperature Rating -10 to 60 C
Blade Dimensions 4-1/4 in W x 3-1/4 in D x 7-1/2 in H
