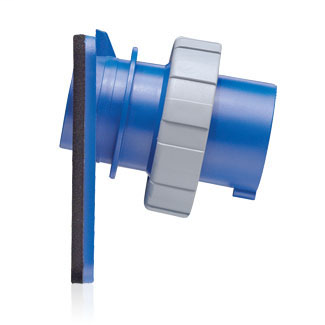

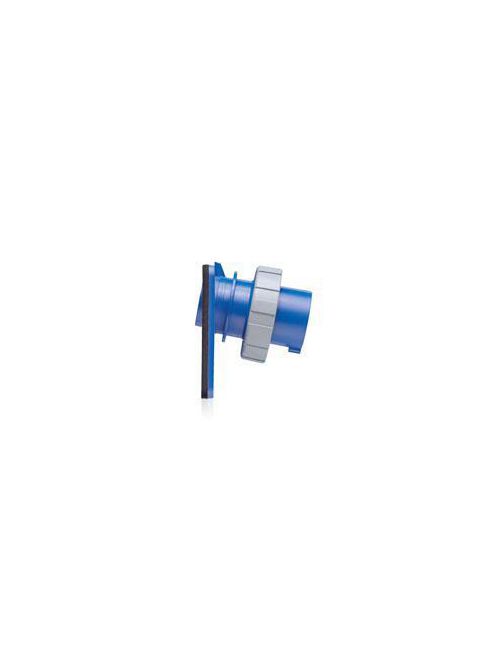

LEV 430B9W BU INLT WTRTIGHT P/S 3PO
$340.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 430B9W
North Coast Part # 549946

Specifications

Material Specifications

  • Gasket Material: Chloroprene
  • Phase and Ground Pins: Brass
  • Locking Ring: Valox 357
  • Terminal Screws: Steel
  • Body Material: Valox 357
  • Mounting Flange: Valox 357
  • Contact Carrier: Nylon

Product Features

  • Color: Blue
  • Device Type: Inlet
  • Configuration: North American
  • Country Of Origin: Please Contact Customer Service.
  • IEC Rating: 60309-1 and 60309-2

Standards and Certifications

  • Warranty: 2-Year Limited
  • CSA Certified: C22.2 No 182.1
  • CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC
  • IEC Rating: 60309-1 and 60309-2
  • UL Listed: 1682 and 1686

Electrical Specifications

  • Amperage: 30 A
  • Wire: 4
  • Dielectric Voltage: 2000V for 1 min.
  • Current Interrupting: Certified for current interrupting at full rated current
  • Endurance: Up to 1000 connects and disconnects, under load, at full rated current and voltage
  • Pole: 3
  • Insulation Resistance: 500V for 1 min; >= 5MΩ
  • Voltage: 250 VAC
  • Phase: 3-Phase

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
  • Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25°C water
  • IP Rating: IP67/IP69K

Overview

UPC 07847708528
GTiN 00078477085288
Warranty Length 2 yr
Size 2.83 L IN
Color Blue
Voltage 250 Volt
Type Watertight Inlet
Material Valox 357 (Housing)
Applications Industrial
Mounting Type Cable
Wire Size 12-10 AWG
Rating IEC 60309-1,IEC 60309-2
Standard UL Listed (1682 And 1686),CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC,CSA Certified (C22.2 No 182.1),IEC Rating (60309-1 And 60309-2)
Connection Type Screw Terminal
Body Material Valox 357
Family Brand Name LEVITON
Wire Count 4
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
TC Connection Screw Terminal
Amperage 30 Amp
IP Rating IP69K,IP67
Environmental Conditions 32 C
CSA C22.2 No 182.1
Number of Poles 3 Pole
Number of Wires 4
Device Type Inlet
