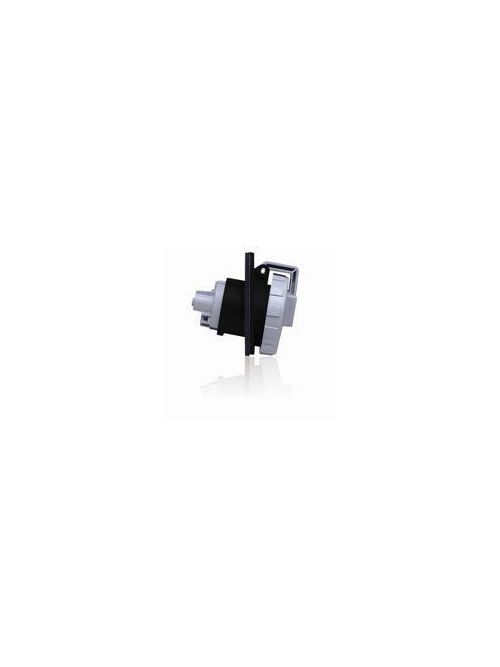

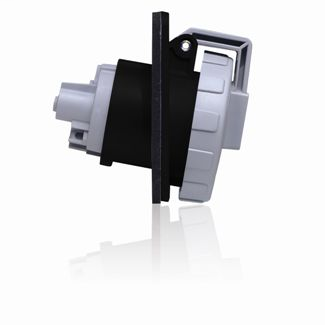

LEV 430R5W EB REC WTRTIGHT P/S 3PO
$281.07/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 430R5W
North Coast Part # 666409

Specifications

Material Specifications

  • Cover Eyelet: Nickel-Plated Brass
  • Sleeve Spring: Stainless Steel
  • Arm Spring: Performance Grade Stainless Steel
  • Terminal Screws: Steel
  • Body Material: Valox 357
  • Gasket Material: Chloroprene
  • Mounting Flange: Valox 357
  • Cover with Arm: Valox 357
  • Phase and Ground Sleeves: Brass

Standards and Certifications

  • Warranty: 2-Year Limited
  • CSA Certified: C22.2 No 182.1
  • CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC
  • IEC Rating: 60309-1 and 60309-2
  • UL Listed: 1682 and 1686

Product Features

  • Color: Black
  • Device Type: Receptacle
  • Configuration: North American
  • Country Of Origin: Please Contact Customer Service.

Mechanical Specifications

  • Minimum Withdrawal Force: 6lbs
  • Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs
  • Crush Test: 250lbs for 1 min after -25°C for 6 hrs

Electrical Specifications

  • Amperage: 30 A
  • Wire: 4
  • Dielectric Voltage: 3000V for 1 min.
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Endurance: Up to 1000 connects and disconnects, under load, at full rated current and voltage
  • Pole: 3
  • Insulation Resistance: 500V for 1 min; >= 5MΩ
  • Voltage: 600 VAC
  • Phase: 3-Phase

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
  • Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25°C water
  • IP Rating: IP67/IP69K

Overview

UPC 07847708551
GTiN 00078477085516
Warranty Length 2 yr
Size 4.10 H x 4.60 D IN
Color Black
Voltage 600 Volt
Type Pin & Sleeve Watertight Receptacle
Applications For Industrial
Mounting Type Surface, Flange, External
Wire Size 4 AWG
Rating IEC 60309-1,IEC 60309-2
Standard CSA Certified C22.2 No 182.1, Per Low Voltage Directives 73\23\EEC, 93\68\EEC,UL Listed 1682 And 1686,IEC Rated 60309-1 And 60309-2
Body Material Valox 357
Family Brand Name Leviton
Wire Count 4
Dielectric 3000 V
Flamability Class Rated V-2 Per UL 94
Amperage 30 Amp
IP Rating IP69K,IP67
Environmental Conditions Watertight
CSA C22.2 No 182.1
Number of Poles 3 Pole
Temperature Rise 150 %
Device Type Receptacle
Interrupt Rating IP67 Watertight
Action TP
Material Plastic
Grade Industrial
Temperature Rating 32 C
Blade Dimensions 4.1 in H x 4.6 in D
Number of Wires 4
