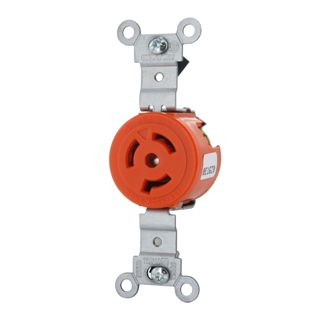

LEV 4560-IG OR REC LOCK SGL 2PO 3WI
$50.33/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 4560-IG
North Coast Part # 825214

Specifications

Material Specifications

  • Line Contacts: Brass .031 Thick
  • Face Material: Nylon
  • Color: Orange
  • Strap Material: Nickel-Plated Brass
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Nylon
  • Yoke: Zinc-Plated Steel

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC
  • Grounding: Isolated Ground

Product Features

  • Color: Orange
  • Country Of Origin: Mexico
  • Feature: Isolated Ground
  • NEMA: L6-15R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG
  • Termination: Side

AC Horsepower Ratings

  • At Rated Voltage: 1-1/2 HP

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847779703
GTiN 00078477797037
Warranty Length Lifetime Limited
Size 46 H IN
Color Orange
Operating Temperature -40 C
Voltage 250 Volt
Type Single Outlet
Material Nylon
Applications Commercial
Mounting Type Box
Country of Origin Mexico
Wire Size 18-10 AWG
Standard ANSI C-73
Connection Type Side Wired
Horsepower 1-1/2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA L6-15R,WD-6
Dielectric 2000 V
Environment Dry
Flamability Class Rated V-2 Per UL 94
Grounding Isolated Ground
TC Connection Side Wired
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
