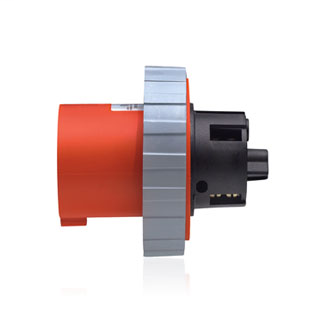

Leviton 460B7W 480 Volt 3-Phase 60 Amp 3-Pole 4-Wire Red Resin 357 Parallel Pin and Sleeve Inlet
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 460B7W
North Coast Part # 14892


Material Specifications

  • Gasket Material: Chloroprene
  • Phase and Ground Pins: Brass
  • Locking Ring: Valox 357
  • Terminal Screws: Steel
  • Body Material: Valox 357
  • Mounting Flange: Valox 357
  • Contact Carrier: Reinforced Nylon

Product Features

  • Color: Red
  • Device Type: Inlet
  • Configuration: North American
  • Country Of Origin: Please Contact Customer Service.
  • IEC Rating: 60309-1 and 60309-2

Standards and Certifications

  • Warranty: 2-Year Limited
  • CSA Certified: C22.2 No 182.1
  • CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC
  • IEC Rating: 60309-1 and 60309-2
  • UL Listed: 1682 and 1686

Electrical Specifications

  • Amperage: 60 A
  • Wire: 4
  • Dielectric Voltage: 3000V for 1 min.
  • Current Interrupting: Certified for current interrupting at full rated current
  • Endurance: Up to 1000 connects and disconnects, under load, at full rated current and voltage
  • Pole: 3
  • Insulation Resistance: 500V for 1 min; >= 5MΩ
  • Voltage: 480 VAC
  • Phase: 3-Phase

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
  • Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25°C water
  • IP Rating: IP67/IP69K


GTiN 00078477837580
Warranty Length 2 yr
Size 5.12 L IN
Color Red
Voltage 480 Volt
Type Pin & Sleeve Watertight Inlet
Applications Industrial
Mounting Type Flange Mount
Wire Size 4 AWG
Rating IEC 60309-2,IEC 60309-1
Standard IEC Rated 60309-1 And 60309-2,UL Listed 1682 And 1686,CSA Certified C22.2 No 182.1, Per Low Voltage Directives 73\23\EEC, 93\68\EEC
Body Material Valox 357
Family Brand Name Leviton
Wire Count 4
Dielectric 3000 V
Flamability Class Rated V-0 Per UL 94
Amperage 60 Amp
IP Rating IP67,IP69K
Environmental Conditions 32 C
CSA C22.2 No 182.1
Number of Poles 3 Pole
Device Type Inlet
Interrupt Rating IP67 Watertight
Action TP
Product UPC 07847783758
