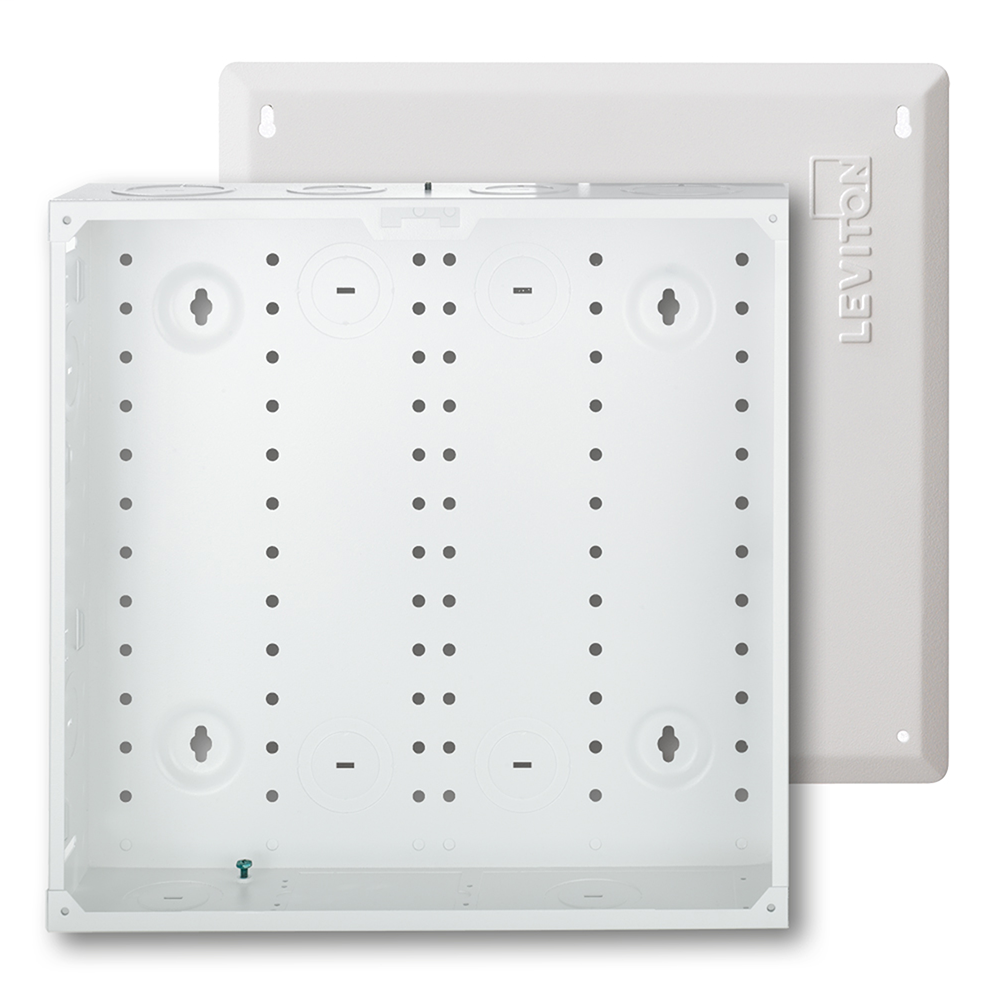

Leviton 47605-140 15.62 x 3.68 x 15.32 Inch Powder Coated White 20 Gauge Steel Flush Mount Enclosure and Cover
$75.30/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 47605-140
North Coast Part # 161488

Features

  • Accommodates two or more full-width Pre-Configured Structured Cabling Panels
  • Positive tabs on housing sidewalls prevent enclosure from falling through the studs during installation
  • One piece white steel unit holds 1/4, 1/2 and full-width expansion modules with the ability to mount most modules vertically or horizontally
  • Can be surface-mounted or recessed
  • Ideal for new installations and retrofits
  • Powder coated white cover features 3/4" overlap to hide irregular drywall cuts
  • Combine two or more enclosures for larger installations or future expansion
  • Multiple knock-outs on top and bottom, including two 2" knock-outs on top, facilitate cable entry and routing
  • Cut-out in base of enclosure for mounting single and double gang J-boxes and power modules
  • Six 3" square self-healing foam grommets accommodate and protect cable bundles
  • Cutout pattern in bottom accommodates the same Leviton Power Modules for any necessary active gear like service provider modems or Leviton active routers and switches
  • Standards Compliance: ACA and CULus listed; UL Listed for fire and burglary
  • Enclosures are constructed of white powder coated 20 gauge steel
  • Covers are constructed of white powder coated 18 gauge steel

videos

Overview

UPC 07847711329
GTiN 00078477113295
Color White
Type Media
Material Steel
Applications For Residential and Commercial Use
Mounting Type Flush
Depth 3.68 in
Height 15.32 in
Standard CULus Listed (ANSI\UL 1863, ANSI\UL 985, ANSI\UL 1023, CAN\CSA C22.2 No. 182.4-M90),TIA (TIA-568-C, TIA-570-B, TIA-607)
Family Brand Name Leviton
Cable Entry Knockout
Enclosure Steel
Sub Brand Structured Media
