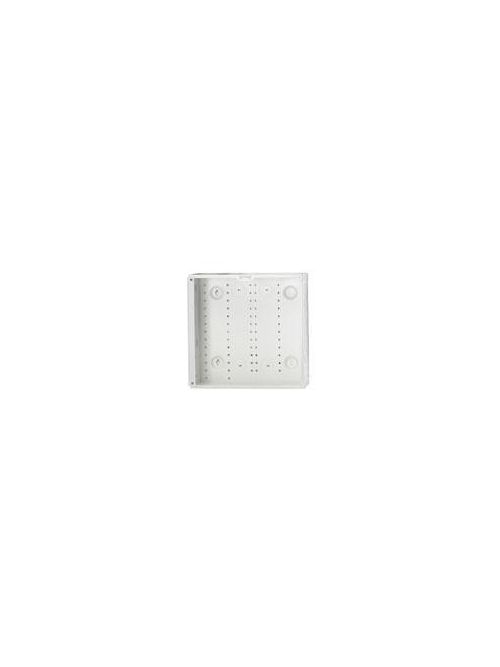

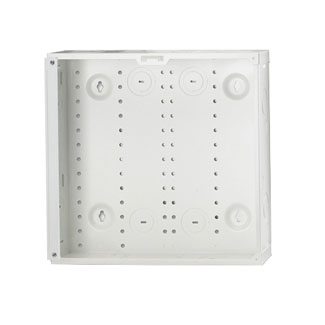

LEV 47605-14E SMC 14" ENCL ONLY
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 47605-14E
North Coast Part # 161639


  • Bottom cutout pattern accommodates AC and DC power modules
  • Mounting slots on the enclosure simplify adjustment for different drywall depths (1/2 inch, 5/8 inch, and 3/4 inch)
  • Enclosures may be surface or flush mounted
  • Optional Flush-Mount Cover overlaps 3/4 inch to hide possible uneven drywall cuts around the enclosure
  • Ships with a cardboard insert to help prevent drywall debris or paint overspray
  • Multiple knockouts on the top and bottom support conduit up to two inches in diameter and facilitate cable routing and entry
  • Self-healing foam grommets protect cable bundles and prevent dust from entering the enclosure
  • Optional ceiling-mount kit available for installing in non-plenum drop-ceiling applications
  • Mounting brackets (sold separately) can accommodate an array of devices



UPC 07847708509
Item Long Description SMC 14-Inch Series, Structured Media Enclosure only, White
GTiN 00078477085097
Color White
Type Enclosure
Material Steel
Applications For Commercial, Residential use
Mounting Type Surface, Flush
Depth 3.63 in
Height 14 in
Standard CULus Listed (ANSI\UL 1863, ANSI\UL 985, ANSI\UL 1023, CAN\CSA C22.2 No. 182.4-M90),TIA (TIA-568-C, TIA-570-B, TIA-607)
Family Brand Name Leviton
Cover Type Snap-On
Cable Entry Knockouts
Enclosure Steel
Sub Brand Structured Media
