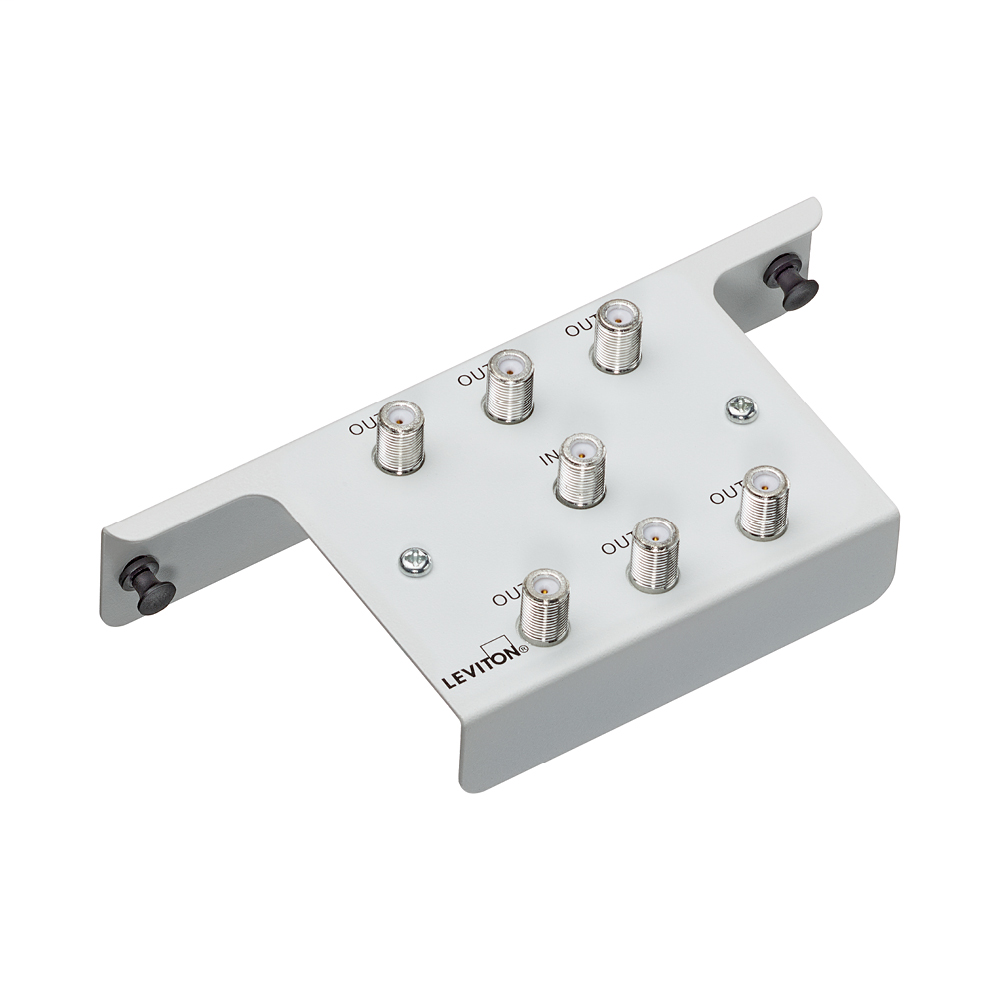

LEV 47690-6C2 SMC SPLTR+BRKT 1X6 2G
$41.82/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 47690-6C2
North Coast Part # 157224

Features

  • Splits Video signals, Outputs for up to 6 televisions.
  • Provide digital cable, cable tv and other video services, via coaxial cable to any room in the house.
  • Die-cast housing and printed circuit board.
  • Use with the Video Amplifier to increase signal quality, analog or standard cable applications only.
  • Units come with mounting bracket for simple installation in Leviton's Structured Media Enclosures.
  • 75 Ohm termination caps included for unused connectors.
  • Gold-flashed contacts on unit provide lowest conductive resistance.

Specifications

Material Specifications

  • Color: White
  • Bracket Material: Steel Powder-Coated

Mechanical Specifications

  • Frequency Range: 2 GHz
  • F-Type Inputs: 1
  • Style Name: 1X6
  • AC Power Adapter: No
  • F-Type Outputs: 6

Product Features

  • Warranty: 2-Year Limited
  • Frequency Range: 2 GHz
  • Color: White
  • Standards and Certifications: Meets all applicable standards
  • Country Of Origin: China
  • AC Power Adapter: No
  • Impedance: 75 Ohm
  • Type: Passive Video Splitter
  • Style Name: 1X6

Performance Data

  • Impedance: 75 Ohm
  • Isolation dB: 35.0 dB - 39.5 dB
  • Return Loss dB Forward: 11.5 dB - 23.5 dB
  • Insertion Loss dB: 11.0 dB - 14.0 dB

videos

Overview

UPC 07847705762
GTiN 00078477057629
Length 3 in
Warranty Length 2 yr
Width 6.58 in
Color White
Type 6-Way, 1-Input, 6-Output
Connector Type SMC 140;SMC 180;SMC 240
Applications For Residential use
Cable Type Coaxial
Height 1.40 in
Country of Origin China
Style 1X6
Standard Meets All Applicable SCTE Standards, ATIC Listed, CULus Listed
Temperature Rating -40 to 85 C
Family Brand Name Leviton
Blade Dimensions 3 in L x 6.58 in W x 1.4 in H
Impedance 75 ?
Connection Type SMC 140;SMC 180;SMC 240
