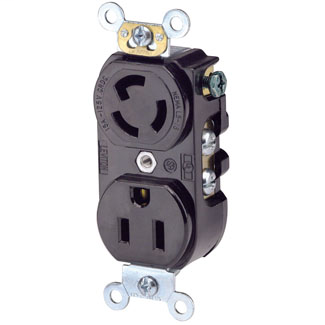

LEV 4795-2R COMBO LKG/STR DPLX RCPT
Product image thumbnail 0
Product image thumbnail 1
$58.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 4795-2R
North Coast Part # 878758

Specifications

Material Specifications

  • Line Contacts: Brass .031 Thick
  • Face Material: Nylon
  • Color: Black
  • Strap Material: Steel
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Nylon
  • Yoke: Zinc-Plated Steel

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Grounding

Product Features

  • Color: Black
  • Country Of Origin: Mexico
  • NEMA: L5-15R/5-15R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

GTiN 00078477943816
Warranty Length Lifetime Limited
Size 46 H x 1.44 W x 0.97 D IN
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type 2-Hot 2-Neutral
Material Thermoplastic
Applications For Industrial
Mounting Type Box
Country of Origin Mexico
Wire Size 18-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wired
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,L5-15R,WD-6
Dielectric 2000 V
Environment Dry
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Back Wired;Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Product UPC 07847794381
Conductor Size 18-10 AWG
Grade Industrial
Blade Dimensions 46 in H x 1.44 in W x 0.97 in D
