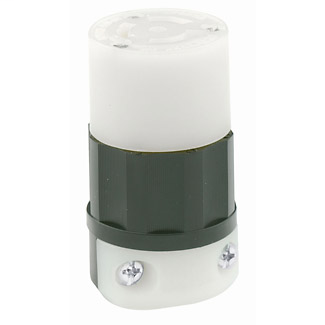

LEV 4889-C #1CD/LCK PLUG L11-15R
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 4889-C
North Coast Part # 606151


  • Backed-out, color-coded brass terminal screws
  • Deep slotted triple drive face module and cord clamp screws
  • Deep wire wells with transparent wiring chambers
  • Single piece 0.035 inch thick contacts with NO rivets for longest life and continuous conductivity
  • Nylon face module features Amperage, Voltage, and NEMA configuration molded into face for easy identification and replacement.
  • Fluted nylon housing makes it easier to grip with gloves and in debris-laden environments
  • Thick-walled, super tough nylon housing resists abuse and impact
  • Single piece external cord clamp includes catalogue number and NEMA configuration for easy identification
  • External cord clamp accepts wire mesh connection grips
  • Connectors ship with standard white and black cord clamp. Color-coded cord clamps available to identify amperage or equipment. Choose from blue, green, yellow, red, and orange.


Environmental Specifications

  • Environment: Dry

Product Features

  • Amperage: 15 A
  • Flammability: Rated HB or better UL94
  • Wire: 3
  • NEMA: L11-15R
  • Color: Black-White
  • Country Of Origin: United States
  • Brand: Black and White
  • Blades/Contacts: Solid Brass
  • Pole: 3
  • Warranty: Limited Lifetime Warranty
  • Body Material: Impact Modified Nylon
  • Wire Gauge: 18-10 AWG
  • Voltage: 250 VAC
  • Grounding: Non-Grounding
  • Cord Range: .240 - .700
  • Assembly Screws: Steel, Zinc Plated
  • Standards and Certifications: UL/CSA

Electrical Specifications

  • Phase: 3-Phase



UPC 07847779586
GTiN 00078477795866
Warranty Length Lifetime Limited
Size 2.76 H x 1.53 W IN
Color Black,White
Voltage 250 Volt
Type Locking Connector
Material Nylon
Applications Commercial
Country of Origin USA
Wire Size 18-10 AWG
Standard CSA,UL
Blade Type Solid Brass
Body Material Impact Modified Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 3
NEMA L11-15R
Number of Phases 3 Phase
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Non-Grounding
Amperage 15 Amp
Number of Poles 3 Pole
Number of Wires 3
Sub Brand Black & White
